140 • 240 • 180 • 280 Series Regenerative Turbine Pumps

Back to the 140 • 240 • 180 • 280 Product Information Page

Dimensions

Horizontal Flex-Coupled

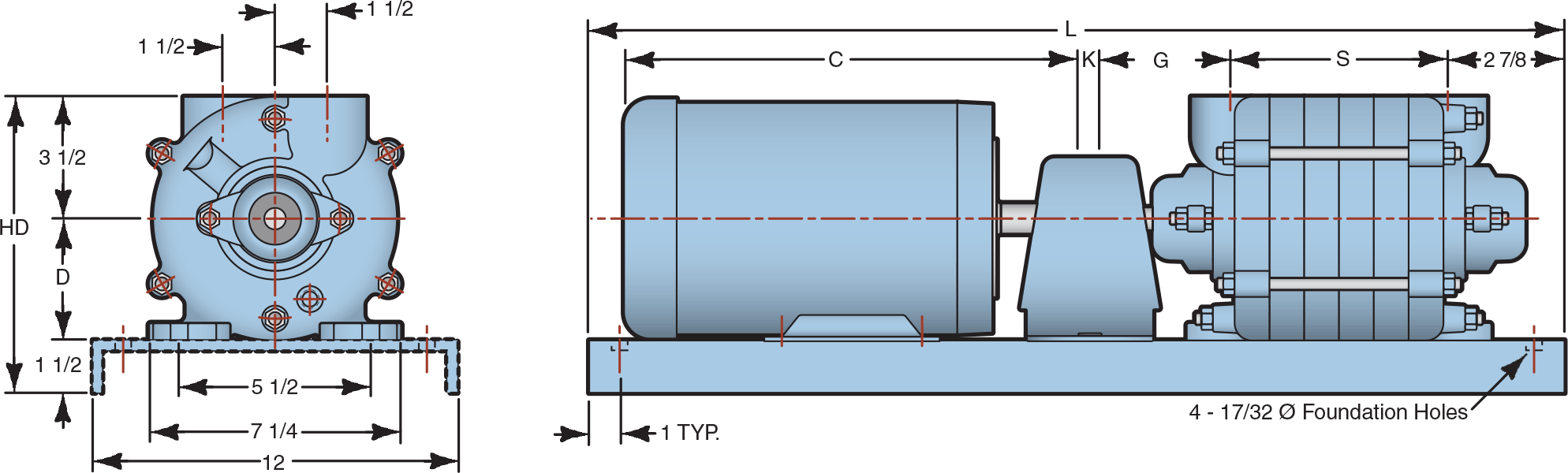

140 • 180 Dimensions

Zoom

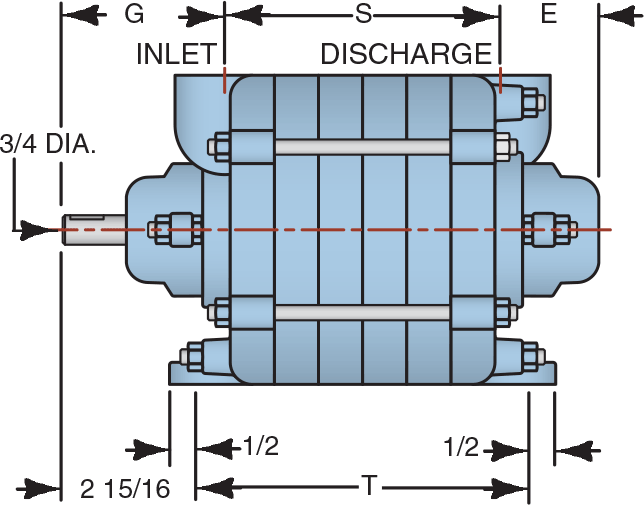

PUMP ONLY

PUMP SERIES

INLET

DISCHARGE

E

G

S

T

141

1 1/4

1 1/4

2 1/8

3 13/16

4 1/4

6

142

1 1/4

1 1/4

2 1/8

3 13/16

6 1/4

8

143

1 1/4

1 1/4

2 1/8

3 13/16

8 1/4

10

144

1 1/4

1 1/4

2 1/8

3 13/16

10 1/4

12

181

1 1/2

1 1/2

2 1/4

3 11/16

5 1/2

7

182

1 1/2

1 1/2

2 1/4

3 11/16

8 1/2

10

183

1 1/2

1 1/2

2 1/4

3 11/16

11 1/2

13

184

1 1/2

1 1/2

2 1/4

3 11/16

14 1/2

16

Zoom

140 Series

FRAME

CPLG

ALL 140 MODELS



MODEL 141



MODEL 142



MODEL 143



MODEL 144

K

D

HD

C



S

GG

L



S

GG

L



S

GG

L



S

GG

L

56

3J

3/8

3 1/2

8 1/2

12



4 1/4

3 13/16

24



6 1/4

3 13/16

26



8 1/4

3 13/16

28



10 1/4

3 13/16

30

143T

4J

5/8

3 1/2

8 1/2

13



4 1/4

3 13/16

24



6 1/4

3 13/16

28



8 1/4

3 13/16

28



10 1/4

3 13/16

30

145T

4J

5/8

3 1/2

8 1/2

14



4 1/4

3 13/16

24



6 1/4

3 13/16

28



8 1/4

3 13/16

28



10 1/4

3 13/16

30

182T

5J

3/4

4 1/2

9 1/2

16



4 1/4

3 13/16

26



6 1/4

3 13/16

30



8 1/4

3 13/16

32



10 1/4

3 13/16

35

184T

5J

3/4

4 1/2

9 1/2

17



---

---

---



6 1/4

3 13/16

30



8 1/4

3 13/16

32



10 1/4

3 13/16

35

213T

6J

7/8

5 1/4

10 1/4

19



---

---

---



---

---

---



8 1/4

---

35



10 1/4

3 13/16

40

215T

6J

7/8

5 1/4

10 1/4

20



---

---

---



---

---

---



---

---

---



10 1/4

3 13/16

40

180 Series

FRAME

CPLG

ALL 180 MODELS



MODEL 181



MODEL 182



MODEL 183



MODEL 184

K

D

HD

C



S

GG

L



S

GG

L



S

GG

L



S

GG

L

56

3J

3/8

3 1/2

8 1/2

12



5 1/2

3 11/16

26



8 1/2

3 11/16

28



11 1/2

3 11/16

30



14 1/2

3 11/16

35

143T

4J

5/8

3 1/2

8 1/2

13



5 1/2

3 11/16

26



8 1/2

3 11/16

28



11 1/2

3 11/16

30



14 1/2

3 11/16

35

145T

4J

5/8

3 1/2

8 1/2

14



5 1/2

3 11/16

26



8 1/2

3 11/16

28



11 1/2

3 11/16

30



14 1/2

3 11/16

35

182T

5J

3/4

4 1/2

9 1/2

16



5 1/2

3 11/16

28



8 1/2

3 11/16

30



11 1/2

3 11/16

32



14 1/2

3 11/16

40

184T

5J

3/4

4 1/2

9 1/2

17



5 1/2

3 11/16

28



8 1/2

3 11/16

30



11 1/2

3 11/16

32



14 1/2

3 11/16

40

213T

6J

7/8

5 1/4

10 1/4

19



---

---

---



8 1/2

3 11/16

35



11 1/2

3 11/16

40



14 1/2

3 11/16

45

215T

6J

7/8

5 1/4

10 1/4

20



---

---

---



8 1/2

3 11/16

35



11 1/2

3 11/16

40



14 1/2

3 11/16

45

All dimensions in inches. May vary ± 1/4 inches.

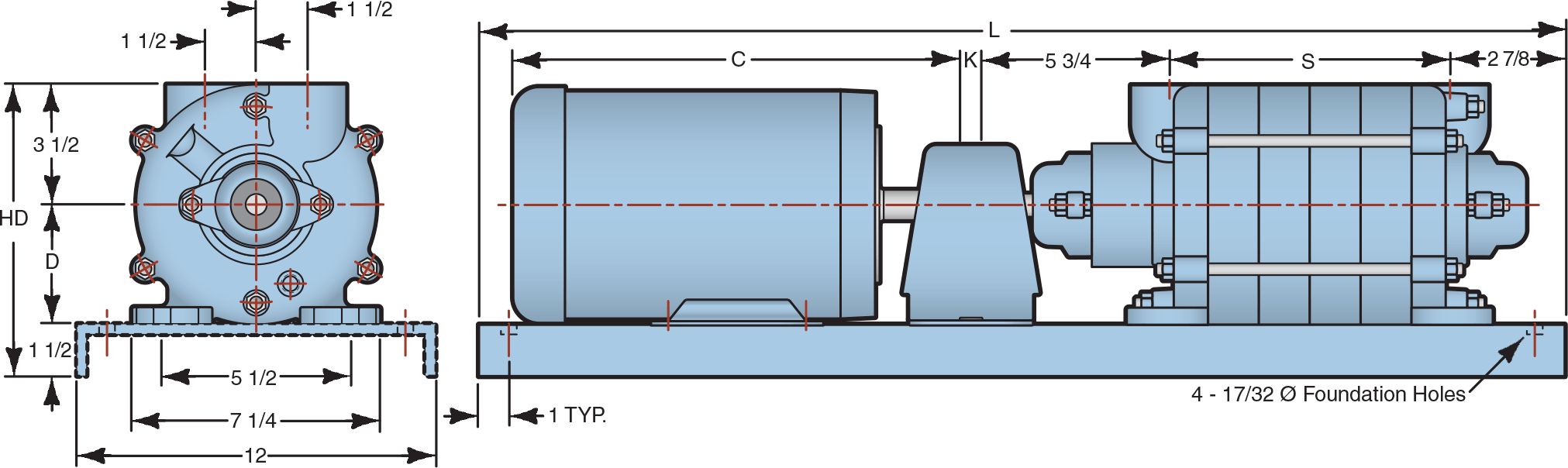

240 • 280 Dimensions

Zoom

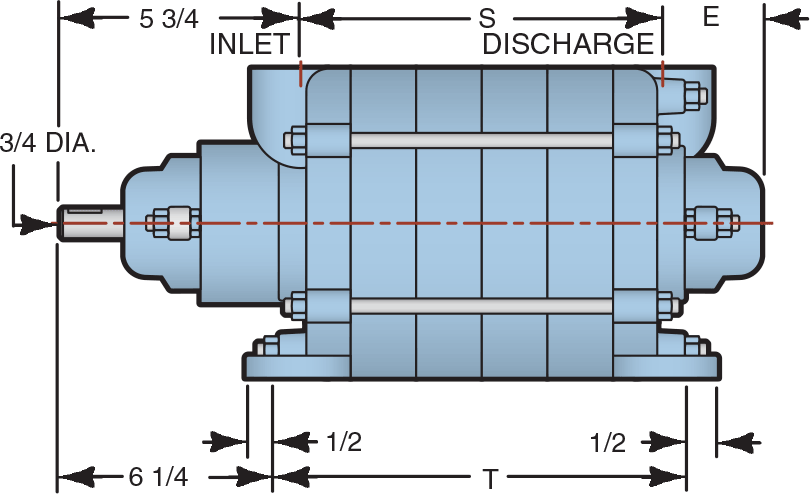

PUMP ONLY

PUMP SERIES

INLET

DISCHARGE

E

S

T

241

1 1/2

1 1/4

2 1/8

5 5/8

6

242

1 1/2

1 1/4

2 1/8

7 5/8

8

243

1 1/2

1 1/4

2 1/8

9 5/8

10

244

1 1/2

1 1/4

2 1/8

11 5/8

12

281

1 1/2

1 1/2

2 1/4

6 5/8

7

282

1 1/2

1 1/2

2 1/4

9 5/8

10

283

1 1/2

1 1/2

2 1/4

12 5/8

13

284

1 1/2

1 1/2

2 1/4

15 5/8

16

Zoom

240 Series

FRAME

CPLG

ALL 240 MODELS



MODEL 241



MODEL 242



MODEL 243



MODEL 244

K

D

HD

C



S

GG

L



S

GG

L



S

GG

L



S

GG

L

56

3J

3/8

3 1/2

8 1/2

12



5 5/8

5 3/4

28



7 5/8

5 3/4

30



9 5/8

5 3/4

32



11 5/8

5 3/4

35

143T

4J

5/8

3 1/2

8 1/2

13



5 5/8

5 3/4

28



7 5/8

5 3/4

30



9 5/8

5 3/4

32



11 5/8

5 3/4

35

145T

4J

5/8

3 1/2

8 1/2

14



5 5/8

5 3/4

28



7 5/8

5 3/4

30



9 5/8

5 3/4

32



11 5/8

5 3/4

35

182T

5J

3/4

4 1/2

9 1/2

16



5 5/8

5 3/4

30



7 5/8

5 3/4

32



9 5/8

5 3/4

35



11 5/8

5 3/4

38

184T

5J

3/4

4 1/2

9 1/2

17



5 5/8

5 3/4

30



7 5/8

5 3/4

32



9 5/8

5 3/4

35



11 5/8

5 3/4

38

213T

6J

7/8

5 1/4

10 1/4

19



---

---

---



---

---

---



9 5/8

5 3/4

40



11 5/8

5 3/4

40

215T

6J

7/8

5 1/4

10 1/4

20



---

---

---



---

---

---



9 5/8

5 3/4

40



11 5/8

5 3/4

40

280 Series

FRAME

CPLG

ALL 280 MODELS



MODEL 281



MODEL 282



MODEL 283



MODEL 284

K

D

HD

C



S

GG

L



S

GG

L



S

GG

L



S

GG

L

56

3J

3/8

3 1/2

8 1/2

12



6 5/8

5 3/4

28



9 5/8

5 3/4

32



12 5/8

5 3/4

35



15 5/8

5 3/4

38

143T

4J

5/8

3 1/2

8 1/2

13



6 5/8

5 3/4

28



9 5/8

5 3/4

32



12 5/8

5 3/4

35



15 5/8

5 3/4

38

145T

4J

5/8

3 1/2

8 1/2

14



6 5/8

5 3/4

28



9 5/8

5 3/4

32



12 5/8

5 3/4

35



15 5/8

5 3/4

38

182T

5J

3/4

4 1/2

9 1/2

16



6 5/8

5 3/4

30



9 5/8

5 3/4

35



12 5/8

5 3/4

38



15 5/8

5 3/4

40

184T

5J

3/4

4 1/2

9 1/2

17



6 5/8

5 3/4

30



9 5/8

5 3/4

35



12 5/8

5 3/4

38



15 5/8

5 3/4

40

213T

6J

7/8

5 1/4

10 1/4

19



---

---

---



---

---

---



12 5/8

5 3/4

40



15 5/8

5 3/4

42

215T

6J

7/8

5 1/4

10 1/4

20



---

---

---



---

---

---



12 5/8

5 3/4

40



15 5/8

5 3/4

42

All dimensions in inches. May vary ± 1/4 inches.

Click here to return to the 140 • 180 Product Information Page.

For a copy of the 140•180•240•280 Manual and 140•180•240•280 Parts List, go to the Product Support Page.

Download a printable version of the 140•180•240•280 Product Bulletin in .pdf format.

Download a printable version of the140•180•240•280 Catalog Pages (curves and dimensions) in .pdf format.

Download a printable, metric version of the 140•180•240•280 Catalog Pages (curves and dimensions) in .pdf format.
