Models 150I • 250I Individual Curve

150 • 160 • 170 • 250 • 260 • 270 Product Information Page

  Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

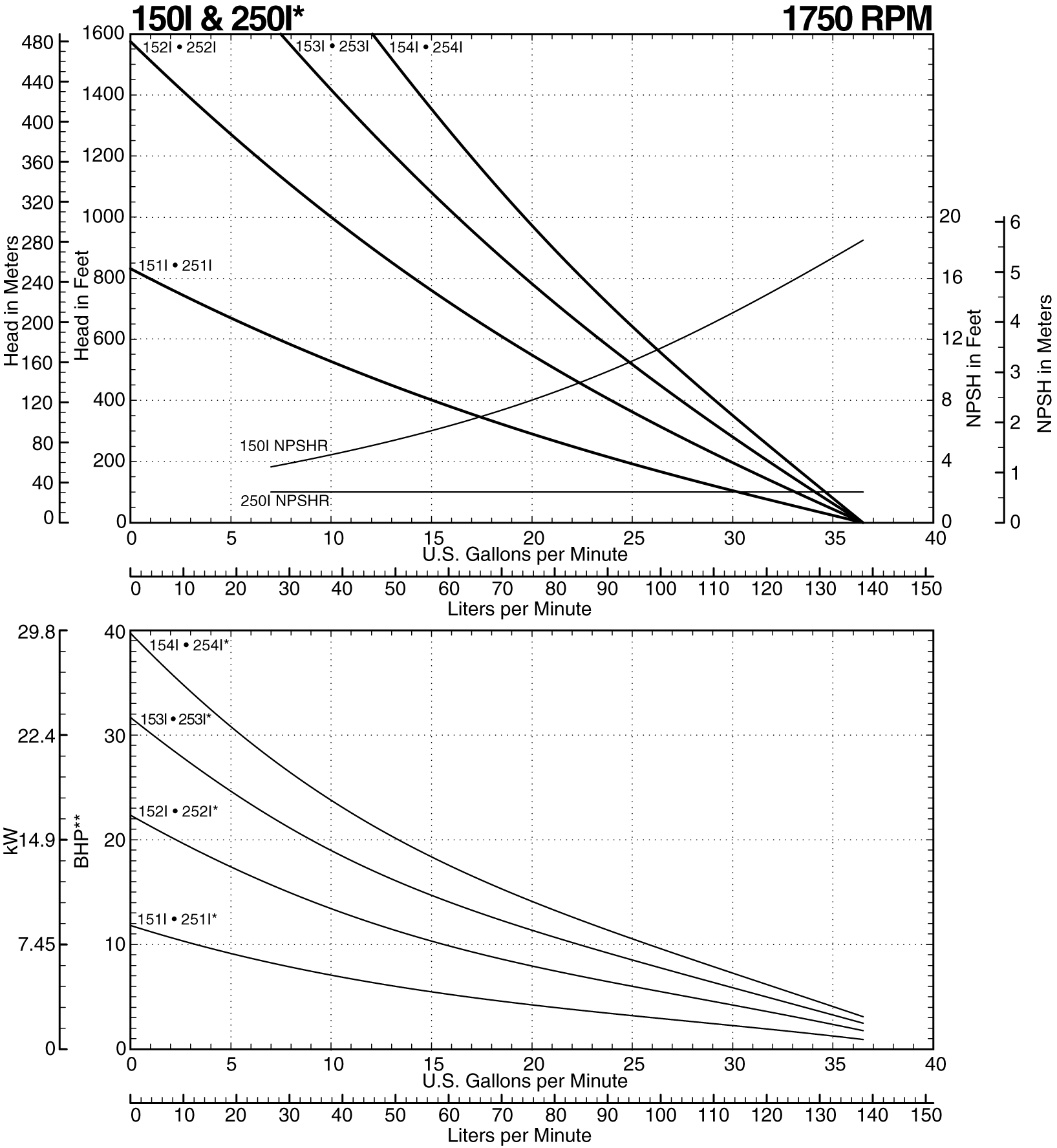

150I 1750 RPM

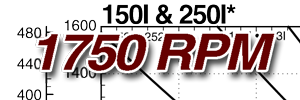

See this individual curve in 1750 RPM, 60Hz Operation

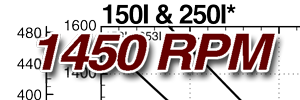

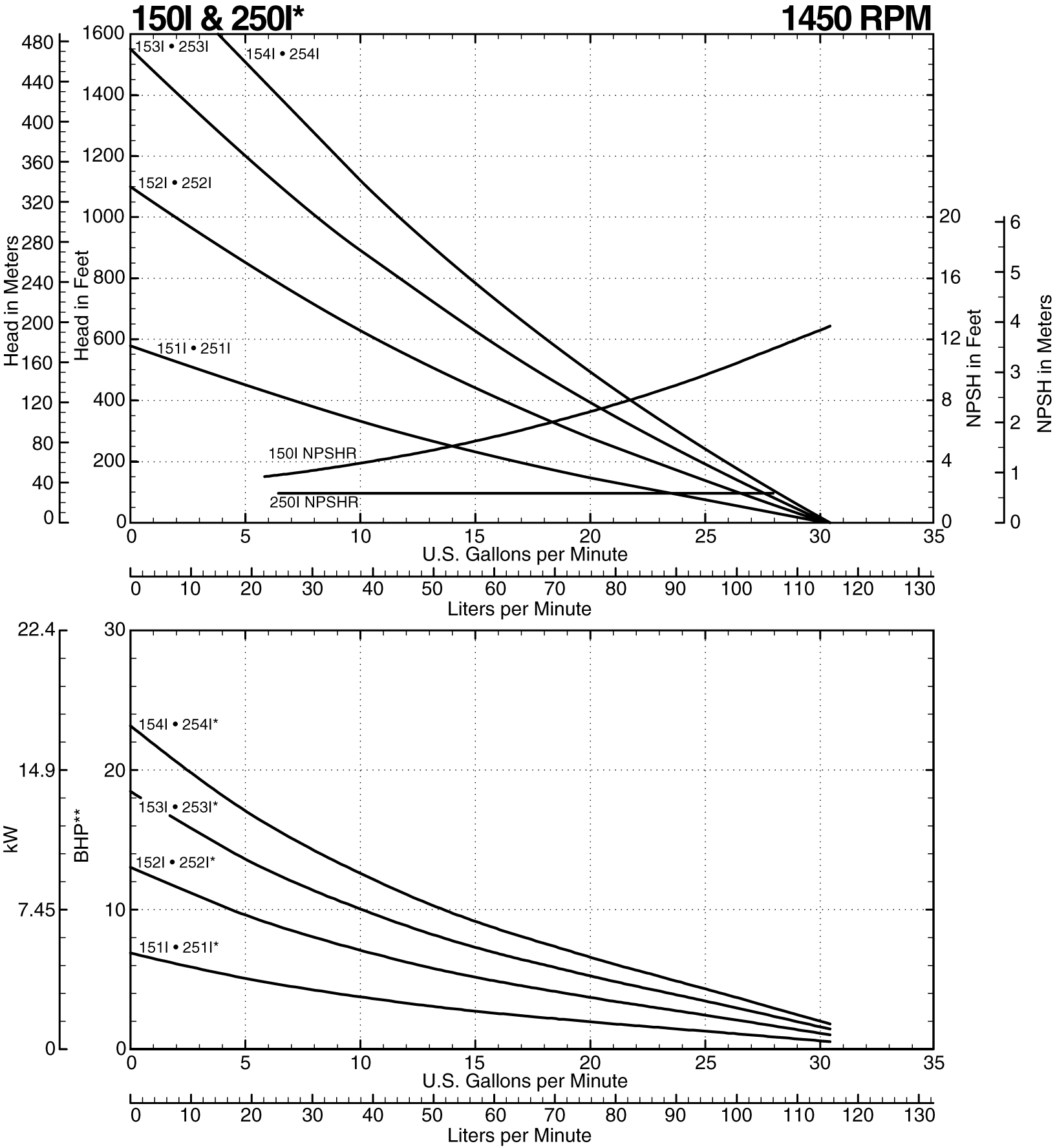

See this individual curve in 1450 RPM, 50Hz Operation
  Next Model >>

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 14.0 GPM
*Add 1 horsepower for 250 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
