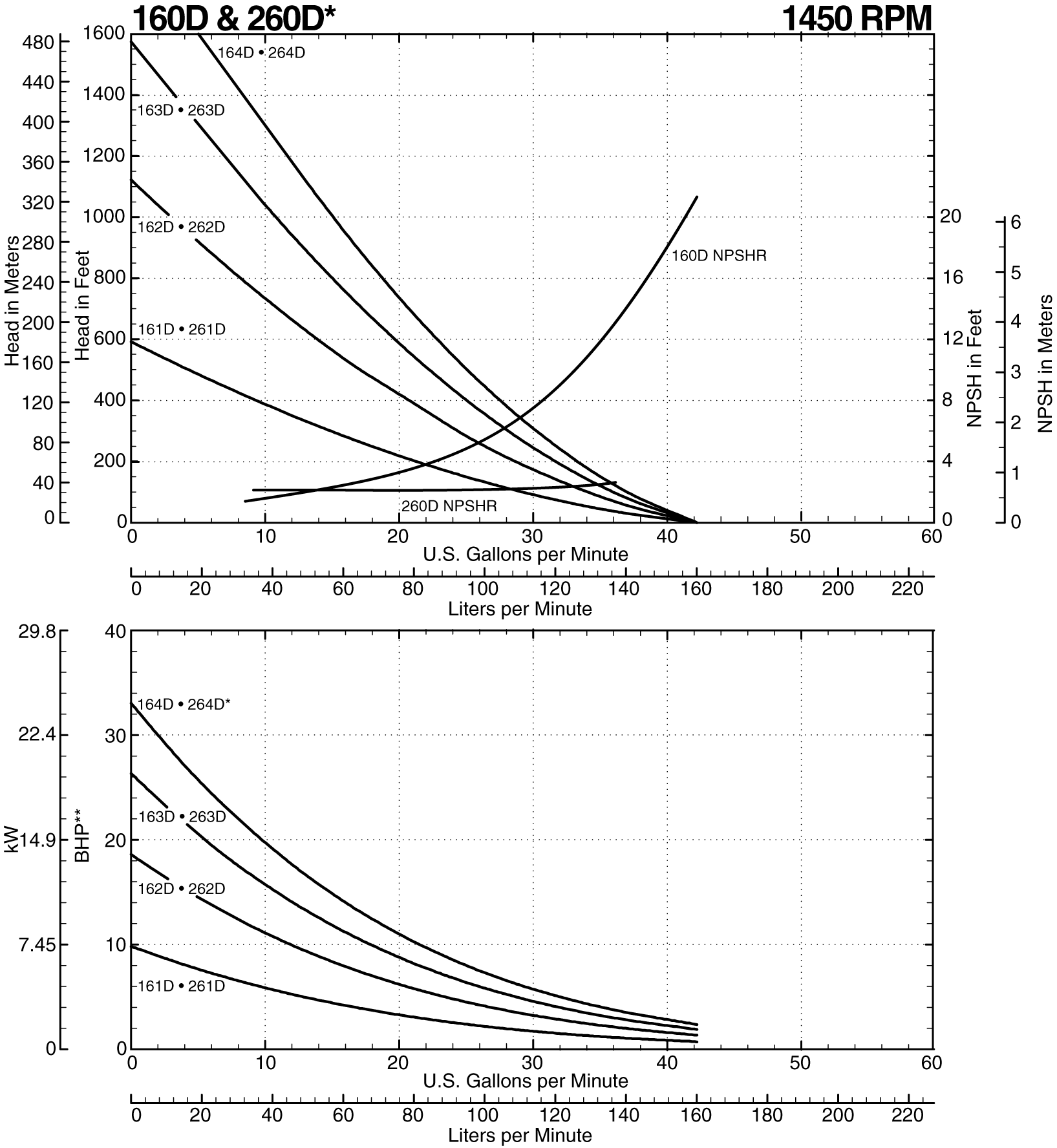

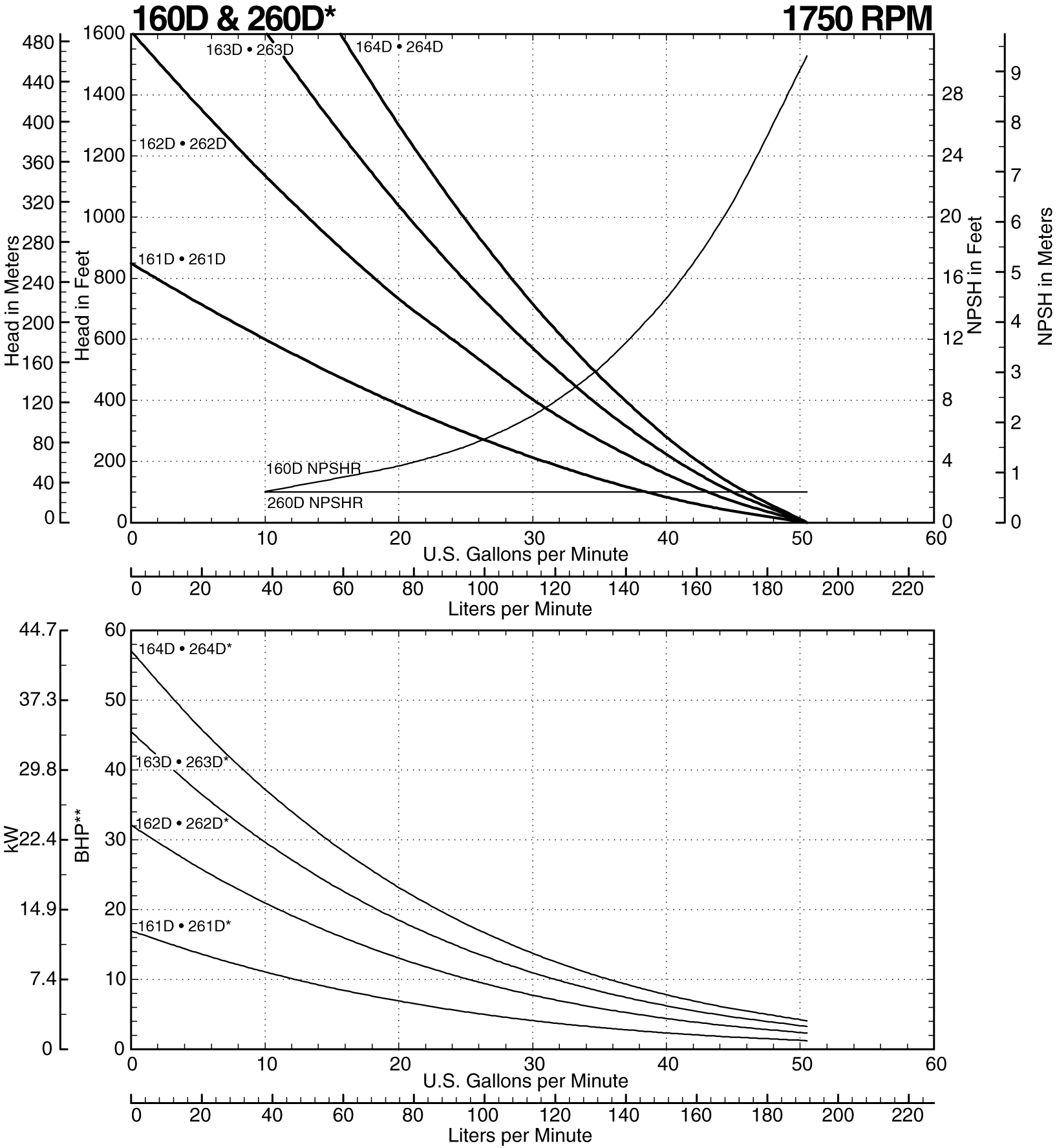

Models 160D• 260D Individual Curve

150 • 160 • 170 • 250 • 260 • 270 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

Next Model >>

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 20.0 GPM
*Add 1 horsepower for 260 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
