160F • 260F Variable Speed Performance

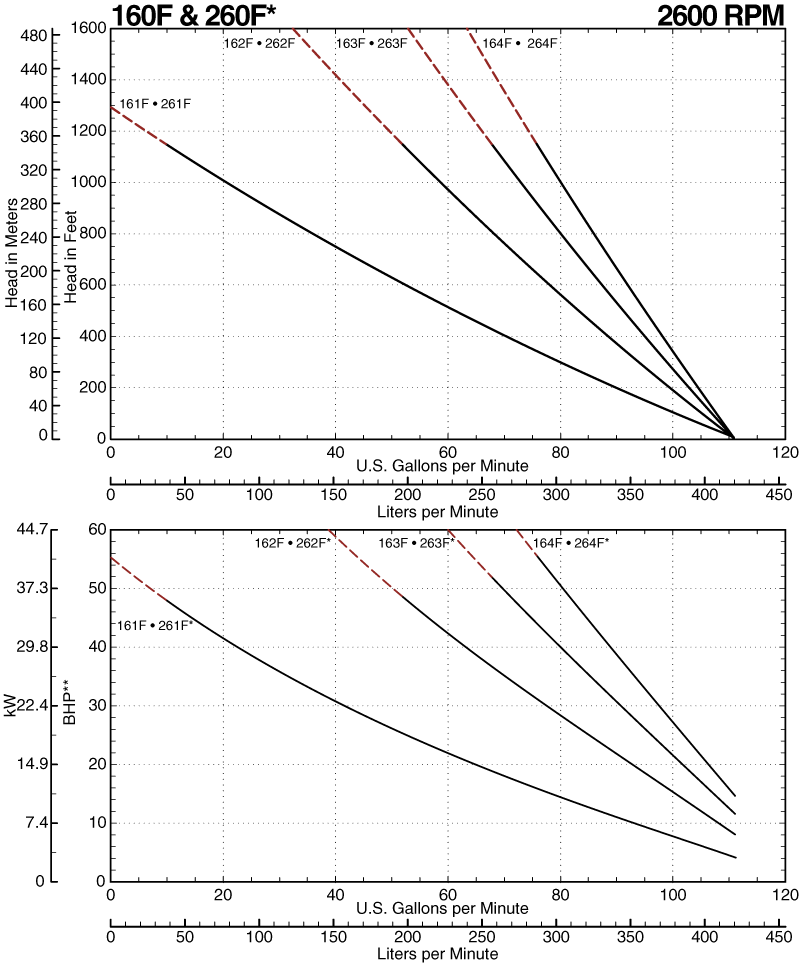

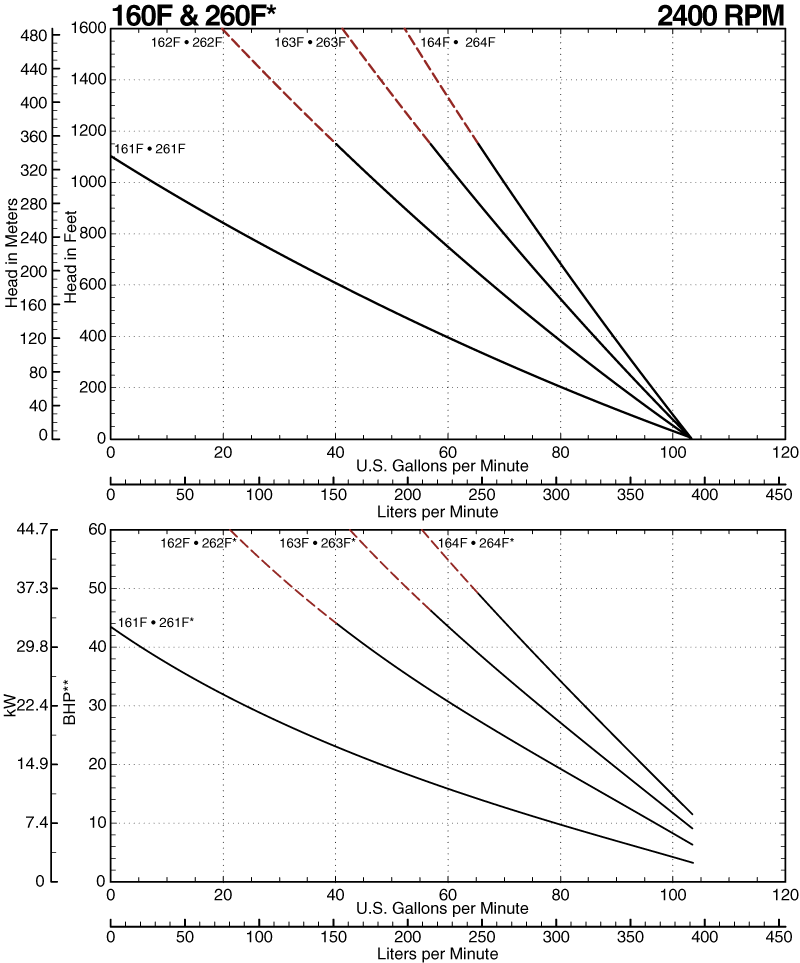

160F • 260F Performance Page

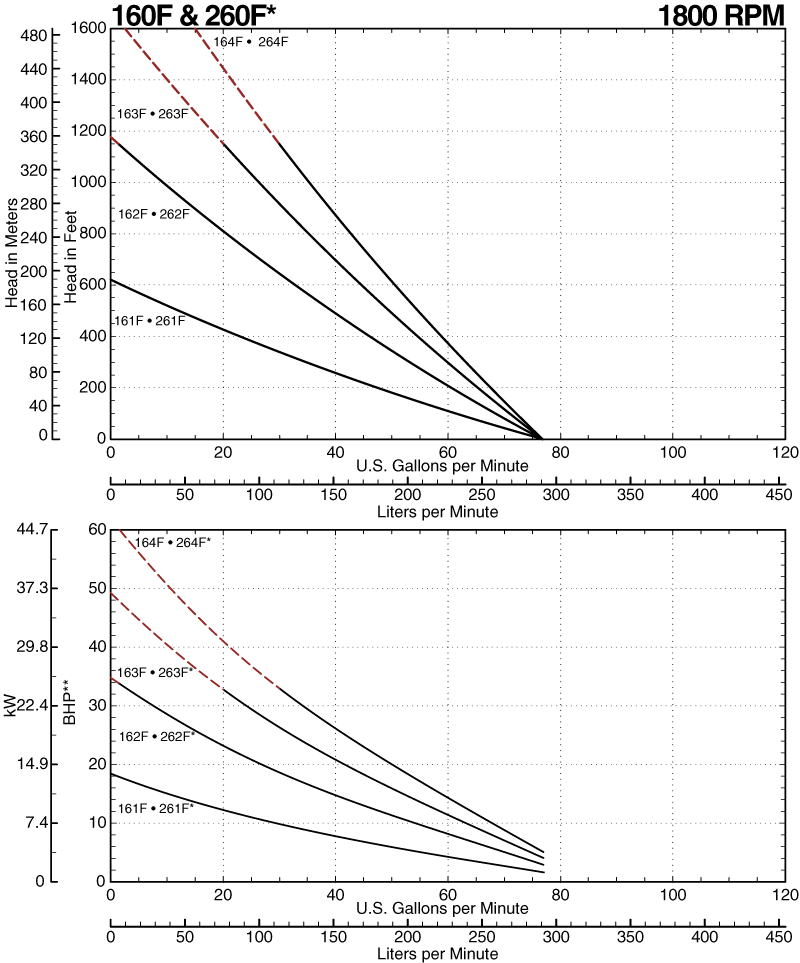

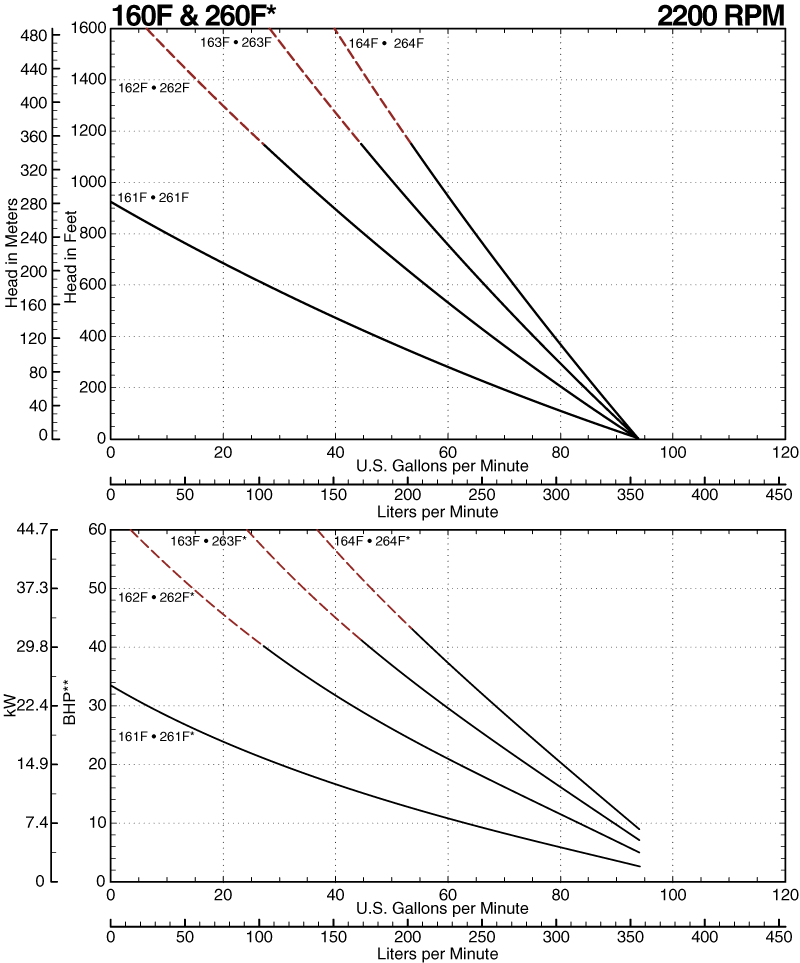

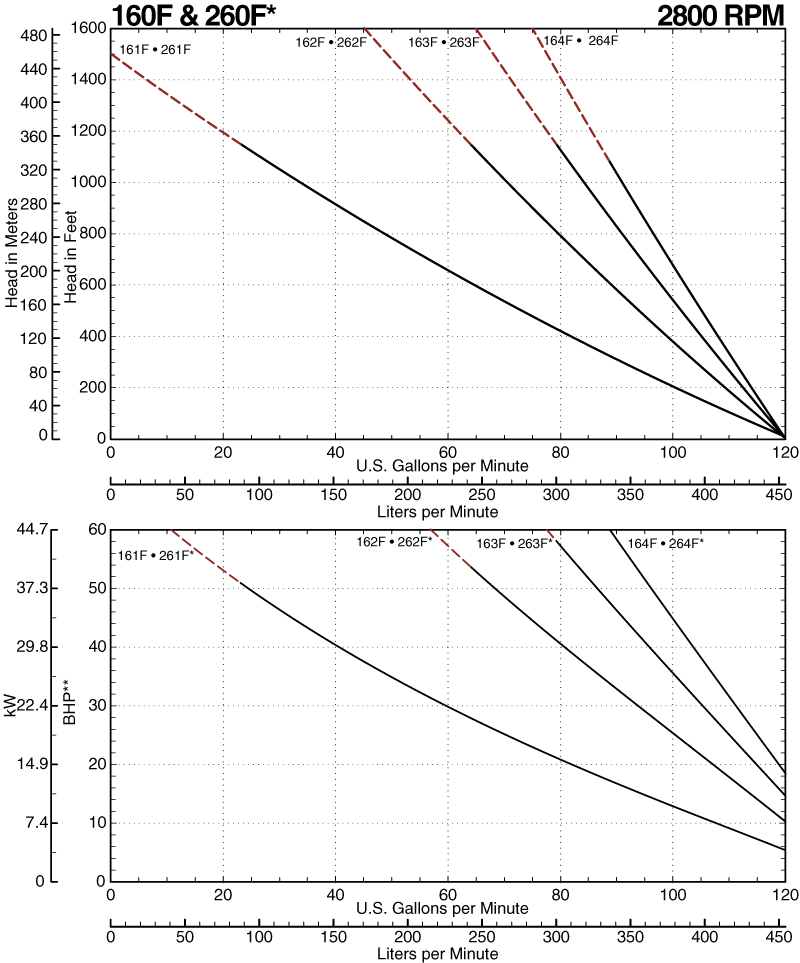

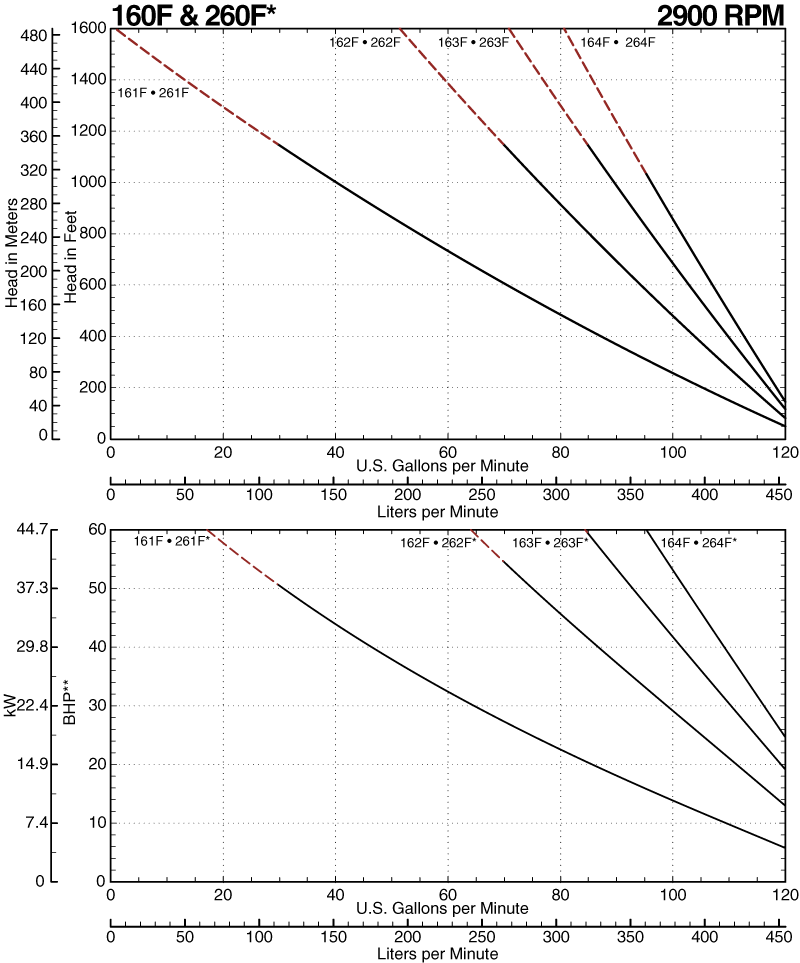

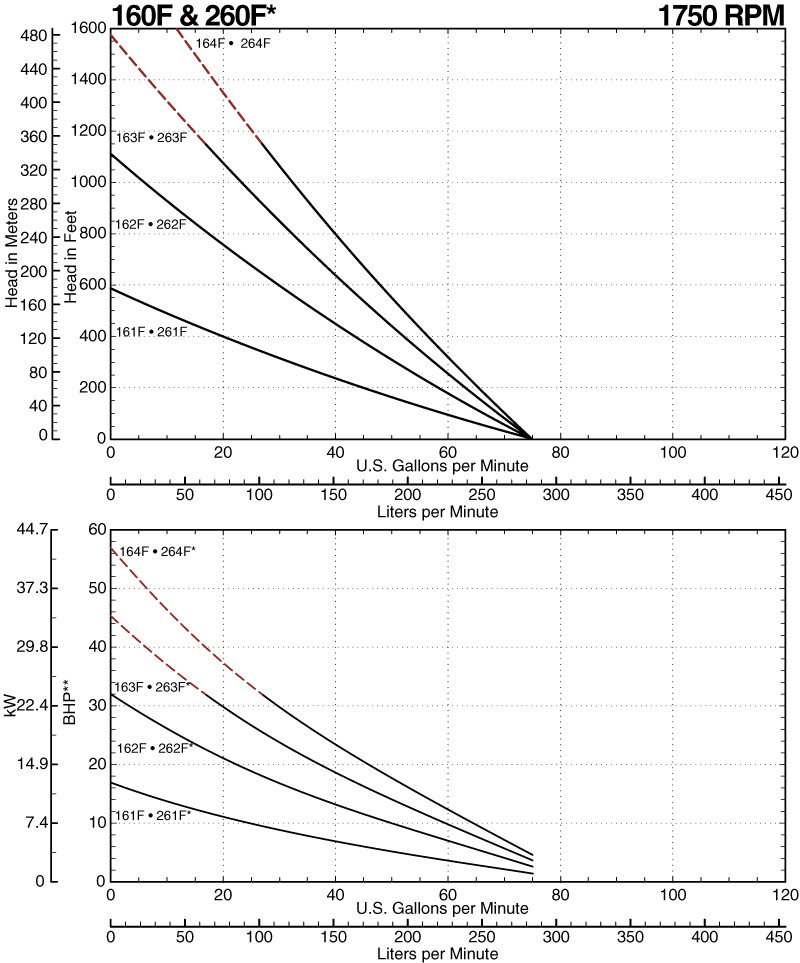

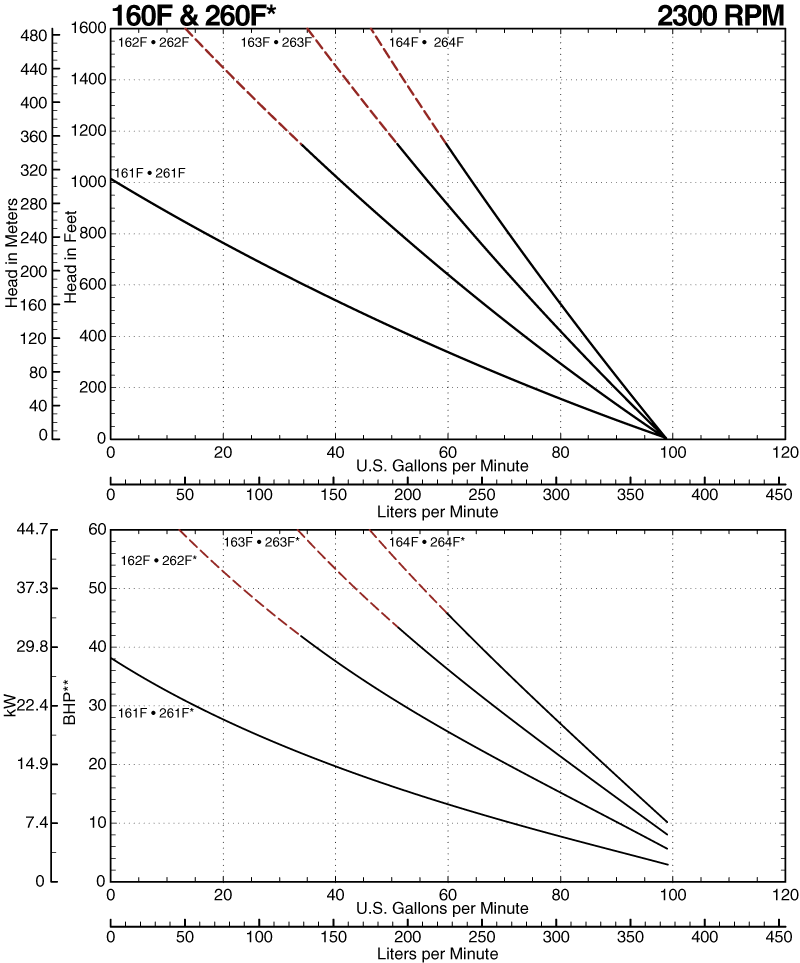

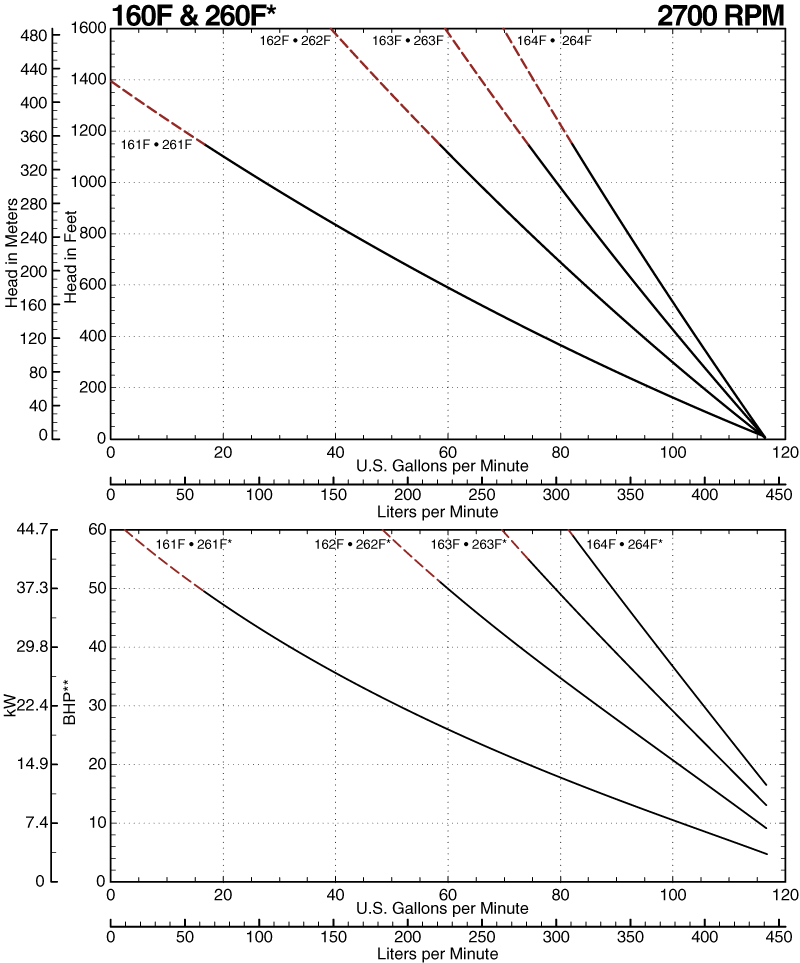

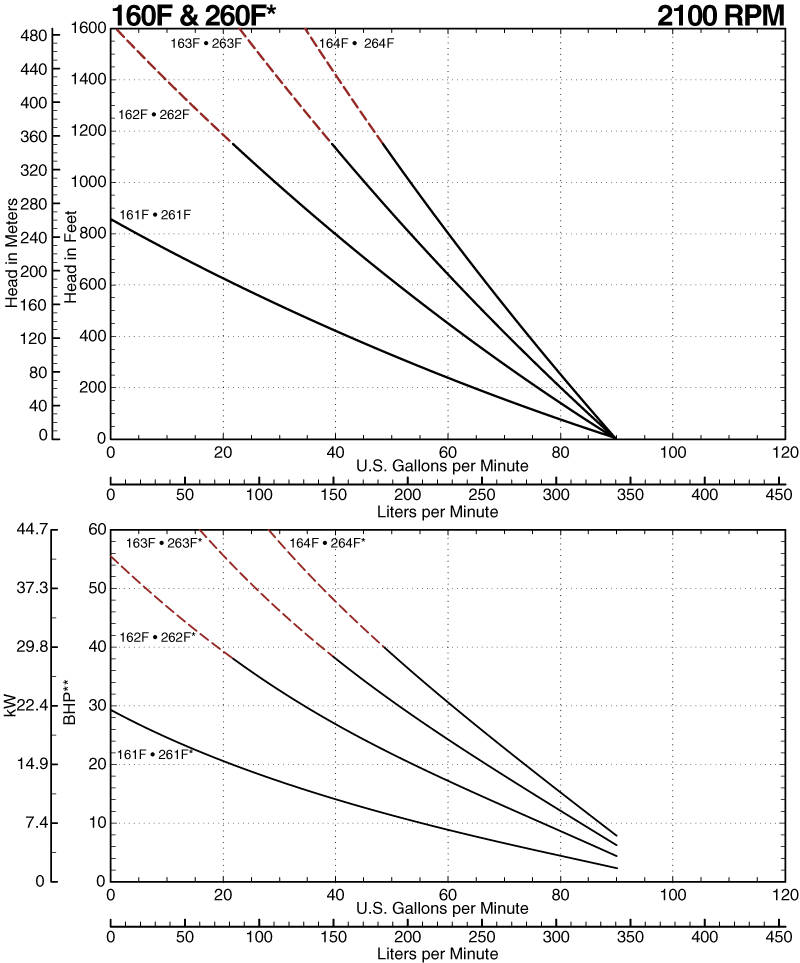

Click on the arrows on the sides of the performance curve to speed up or slow down RPM.

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 29.0 GPM
*Add 1 horsepower for 260 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
