MTH Pumps, 170J Individual Performance Curves

Models 170J • 270J Individual Curve

150 • 160 • 170 • 250 • 260 • 270 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

<< Prev Model	Next Model >>

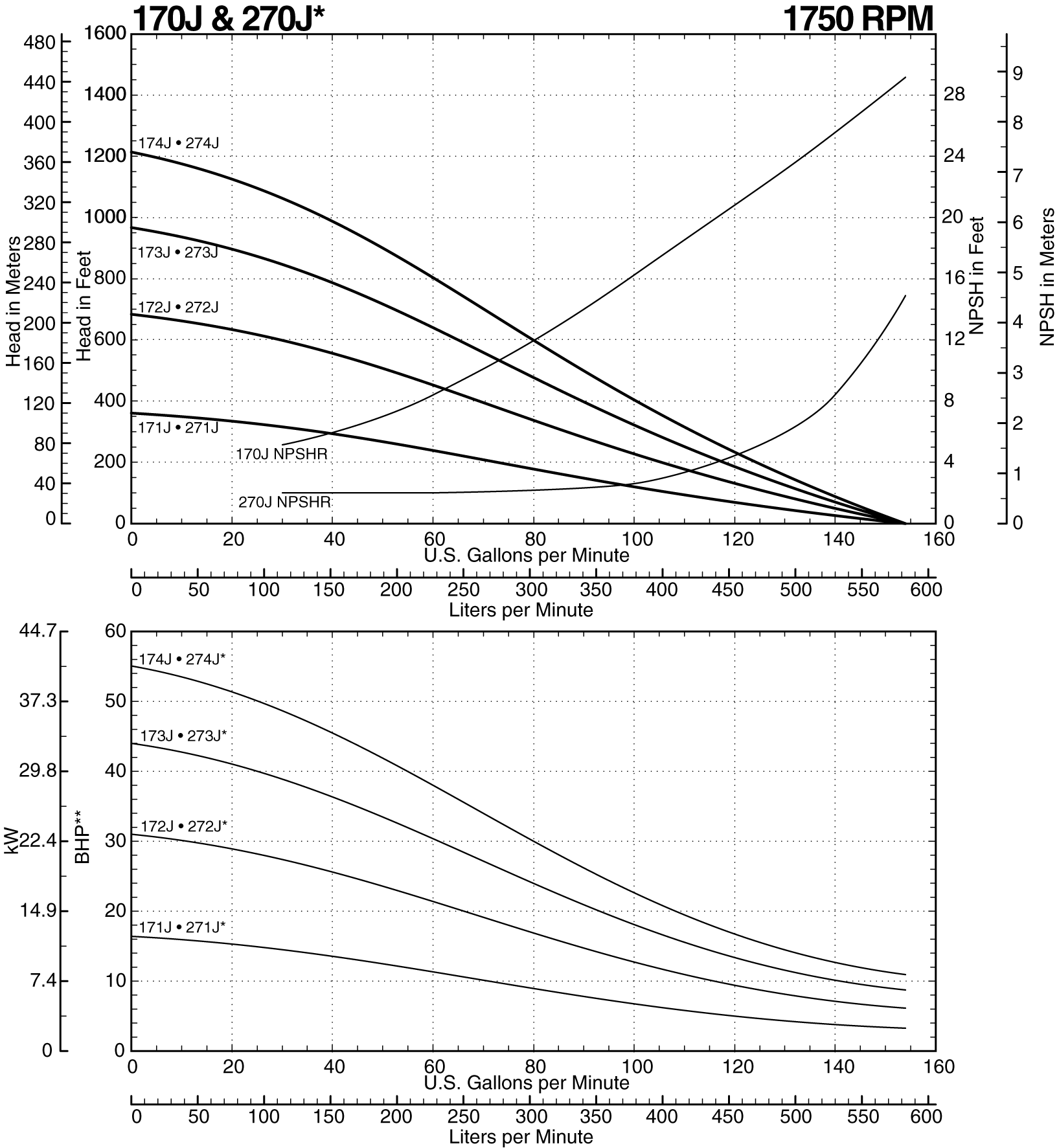

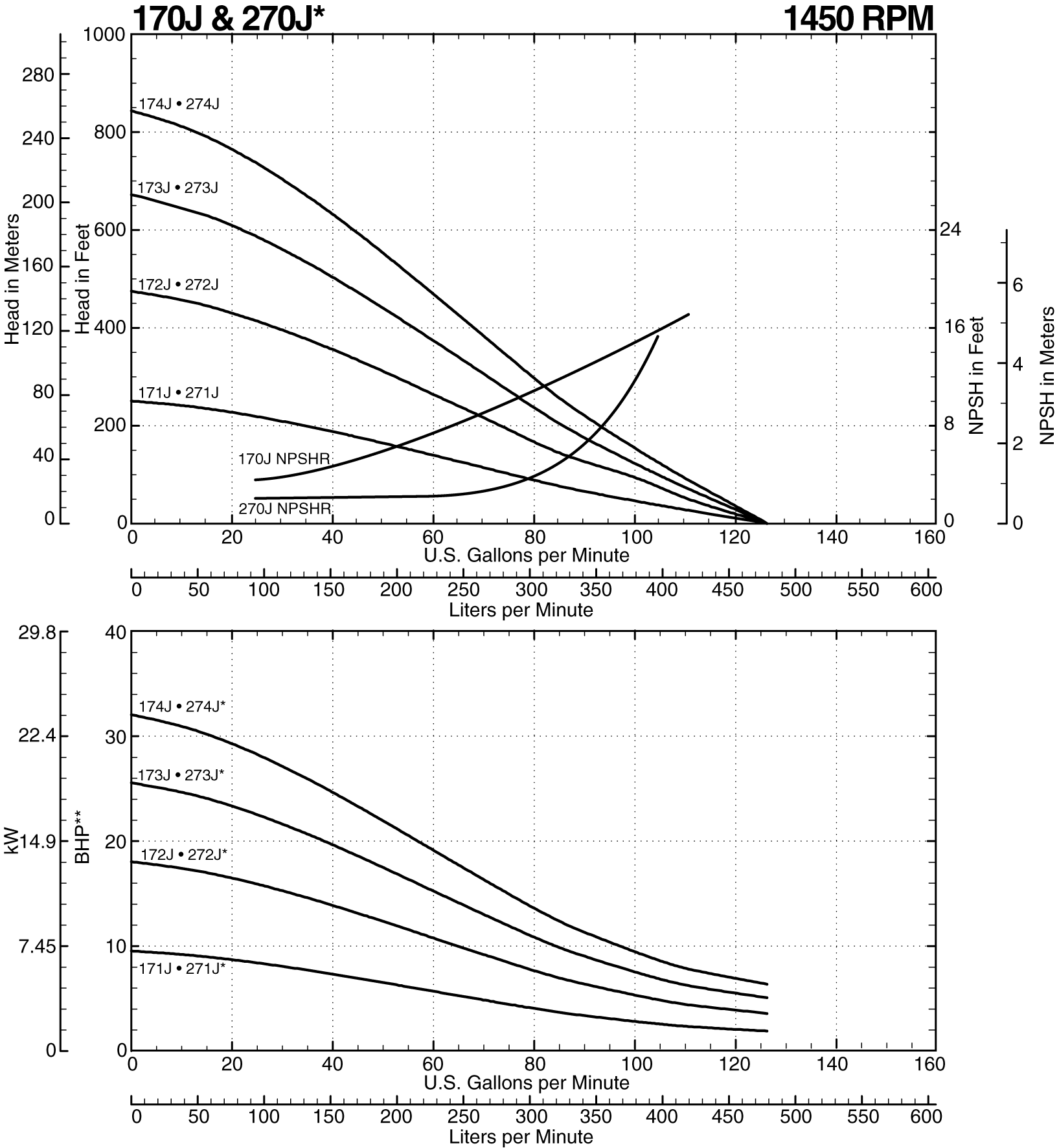

See how the 170J curve performs at different speeds.

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 62.0 GPM
*Add 1 horsepower for 270 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Models 170J • 270J Individual Curve

See how the 170J curve performs at different speeds.

Click here to return to the 150 • 160 • 170 • 250 • 260 • 270 Series Product Information Page.
