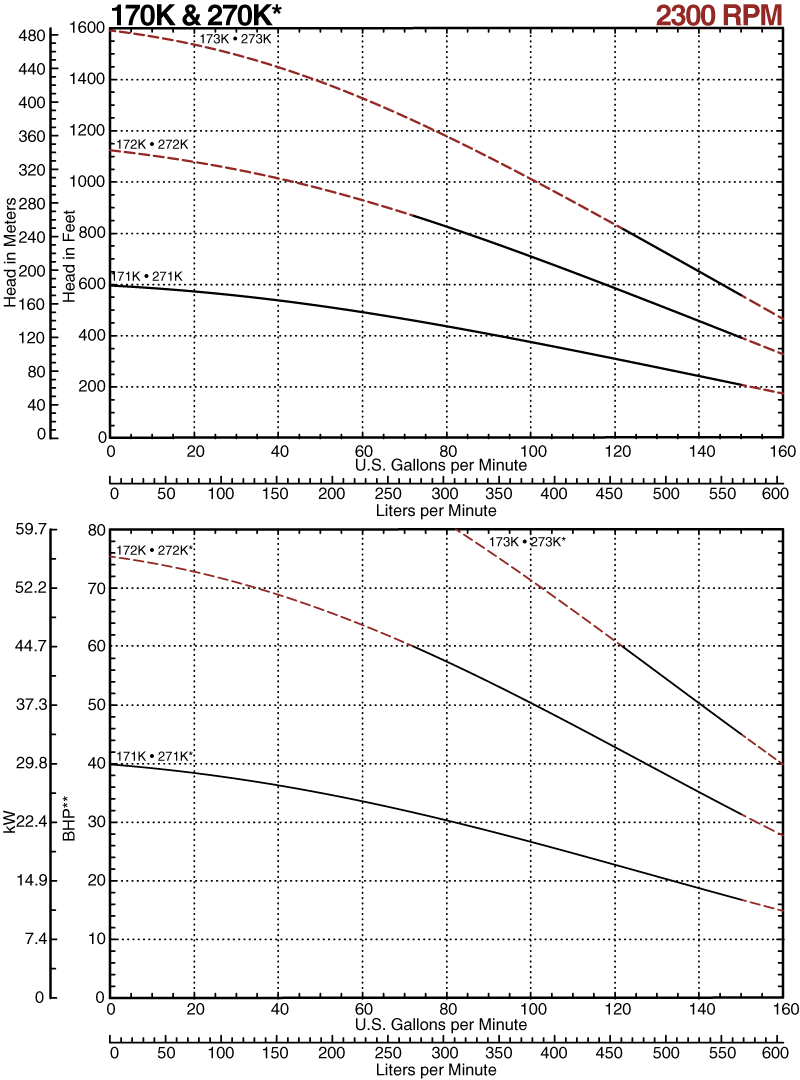

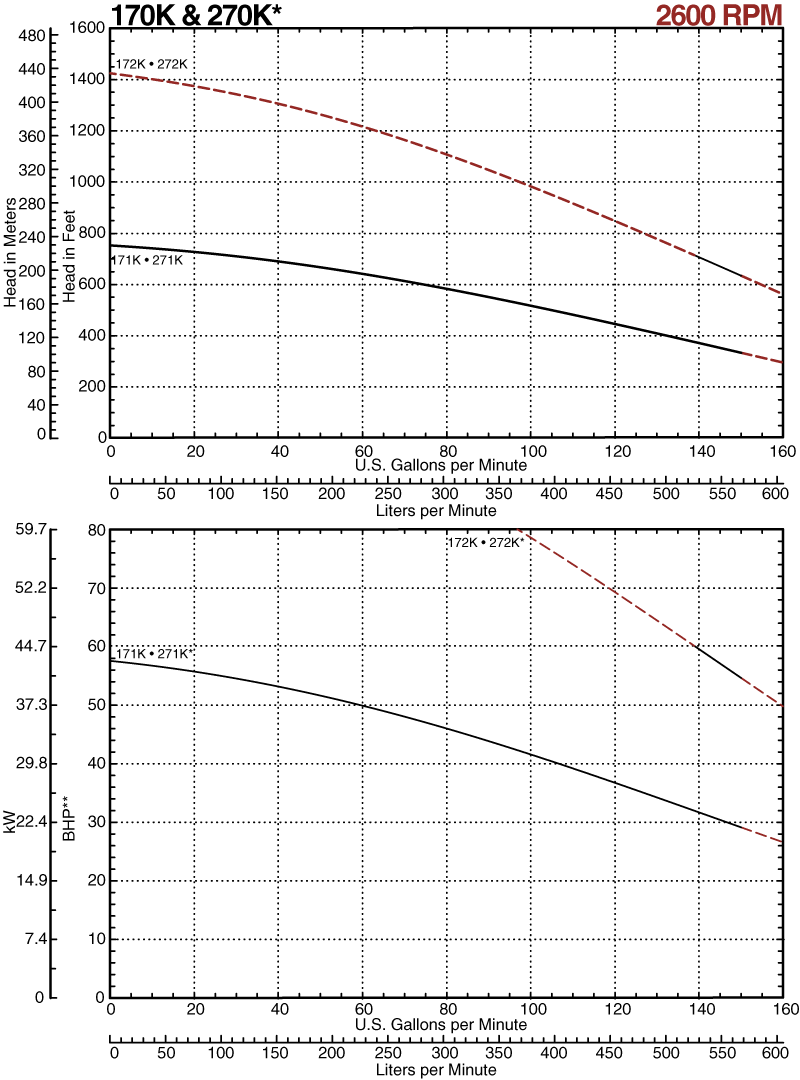

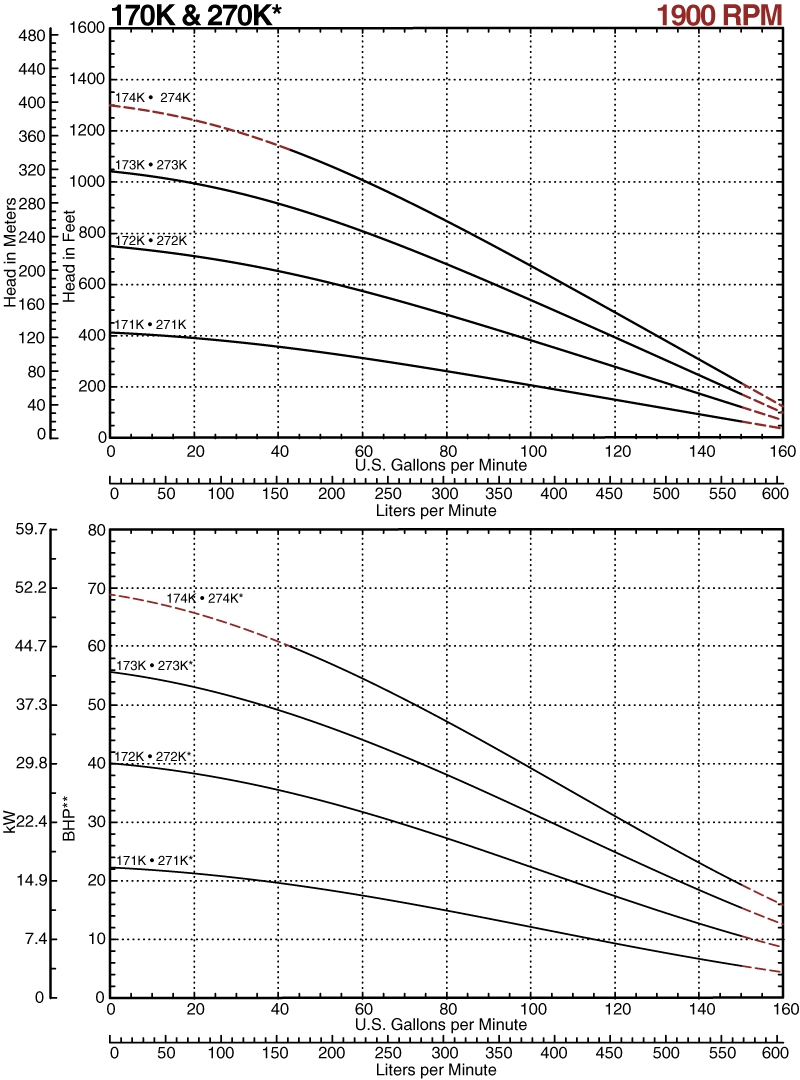

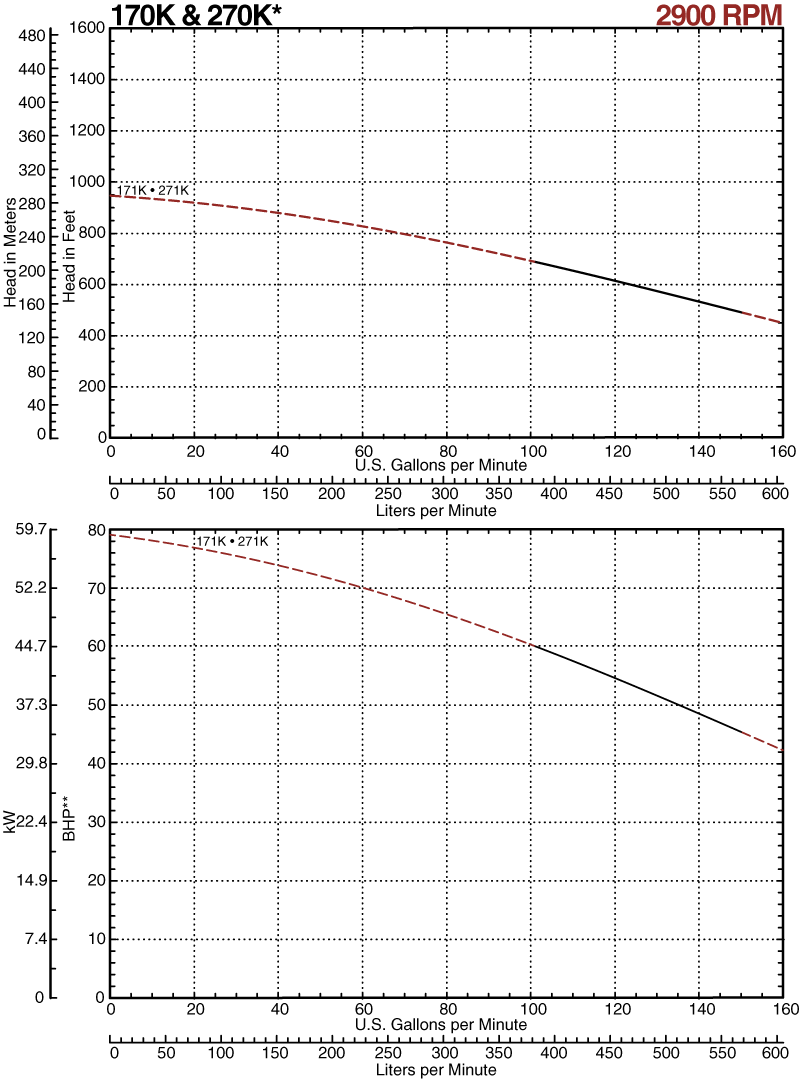

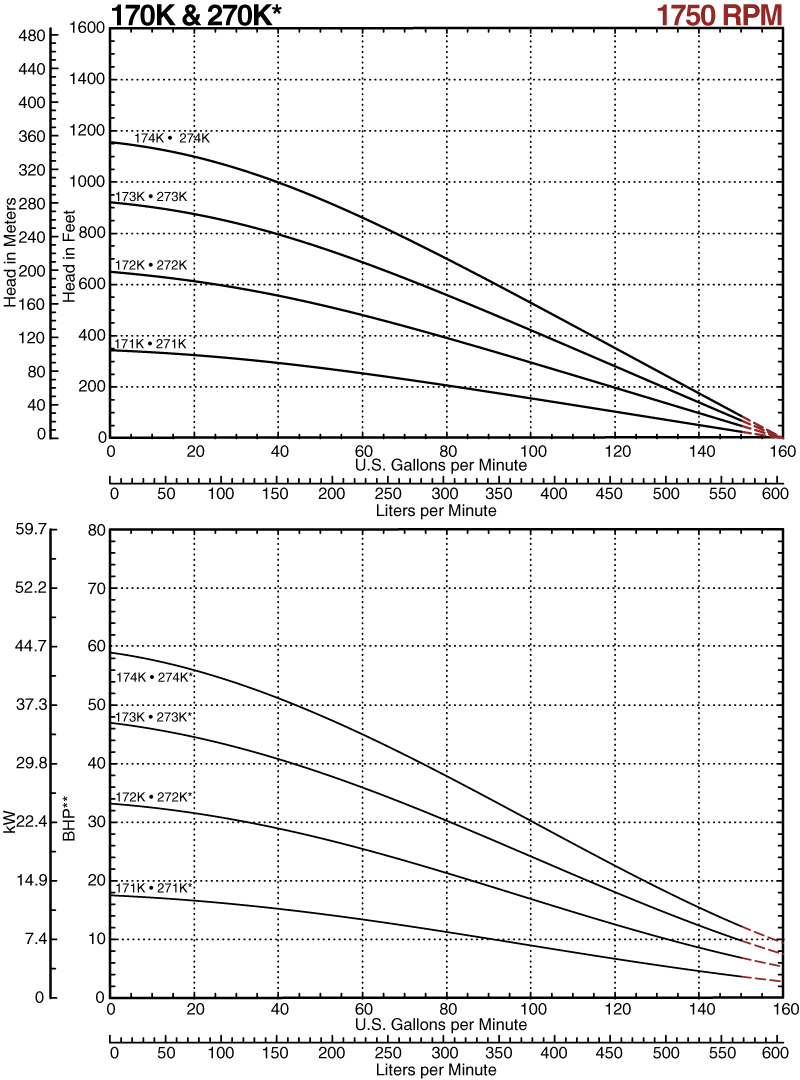

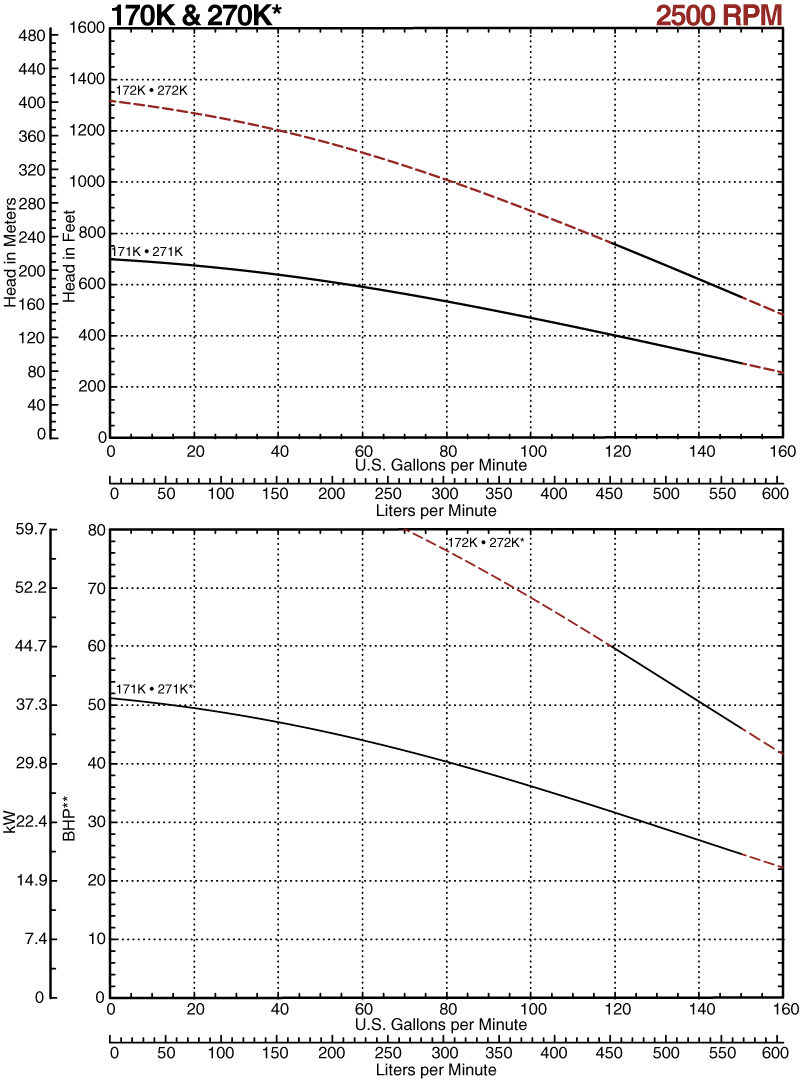

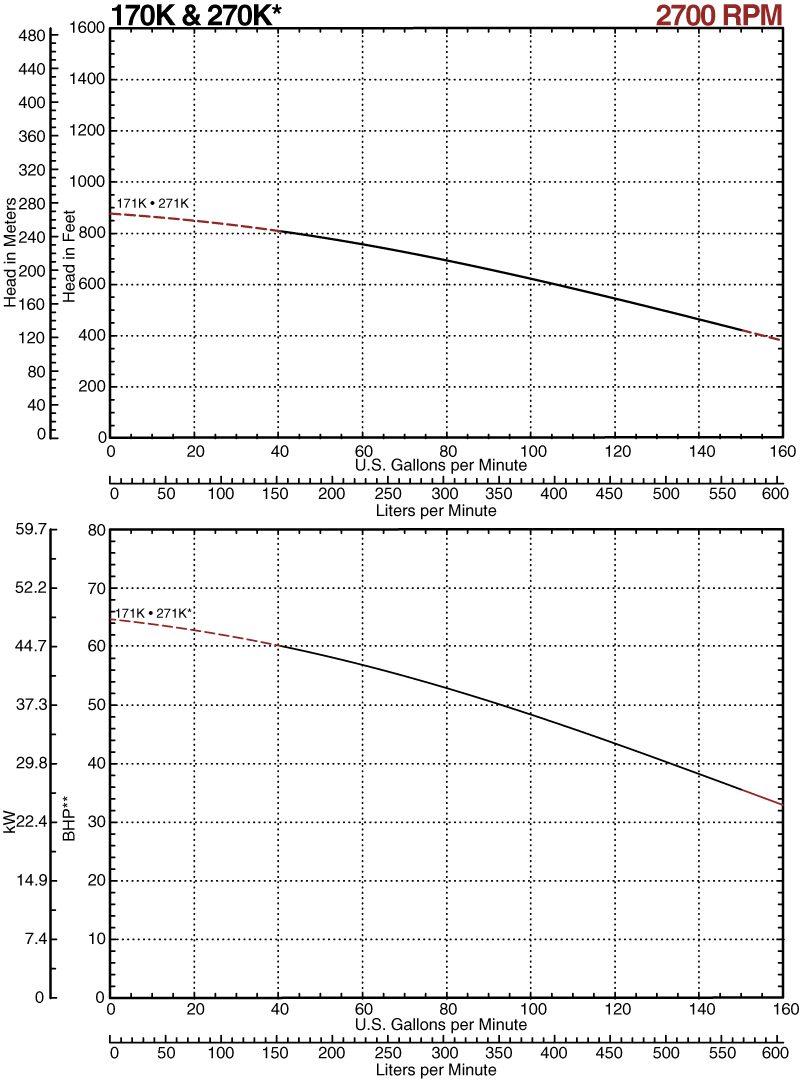

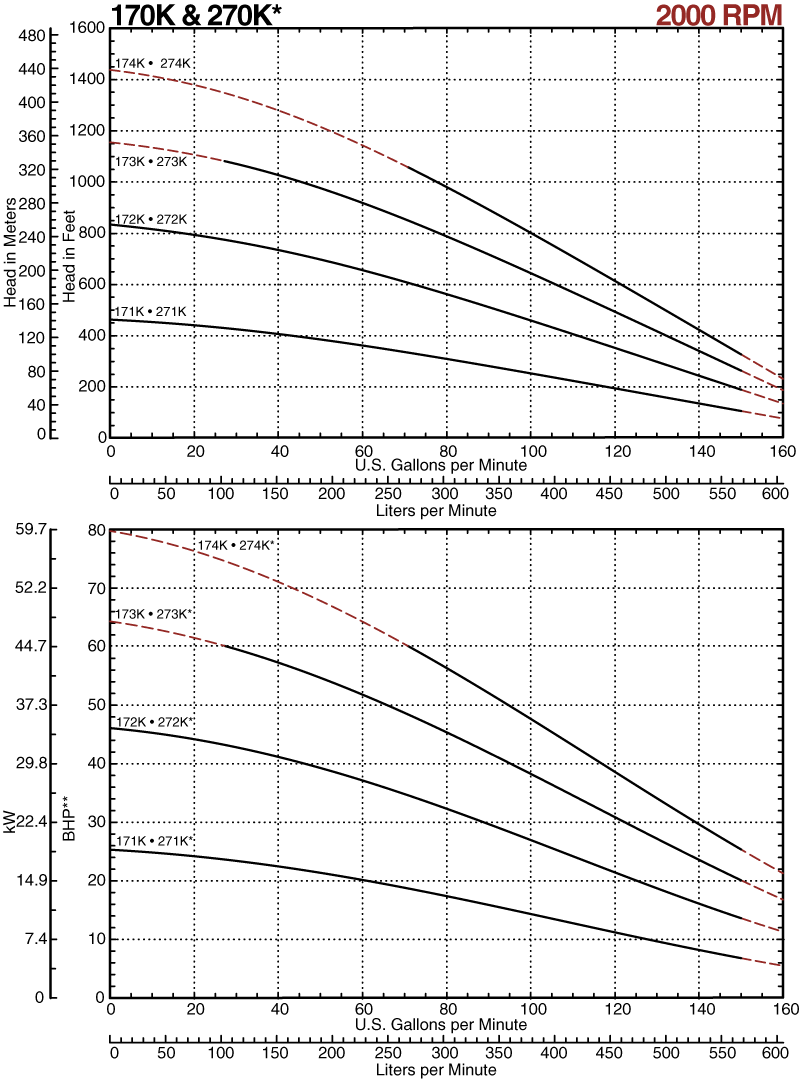

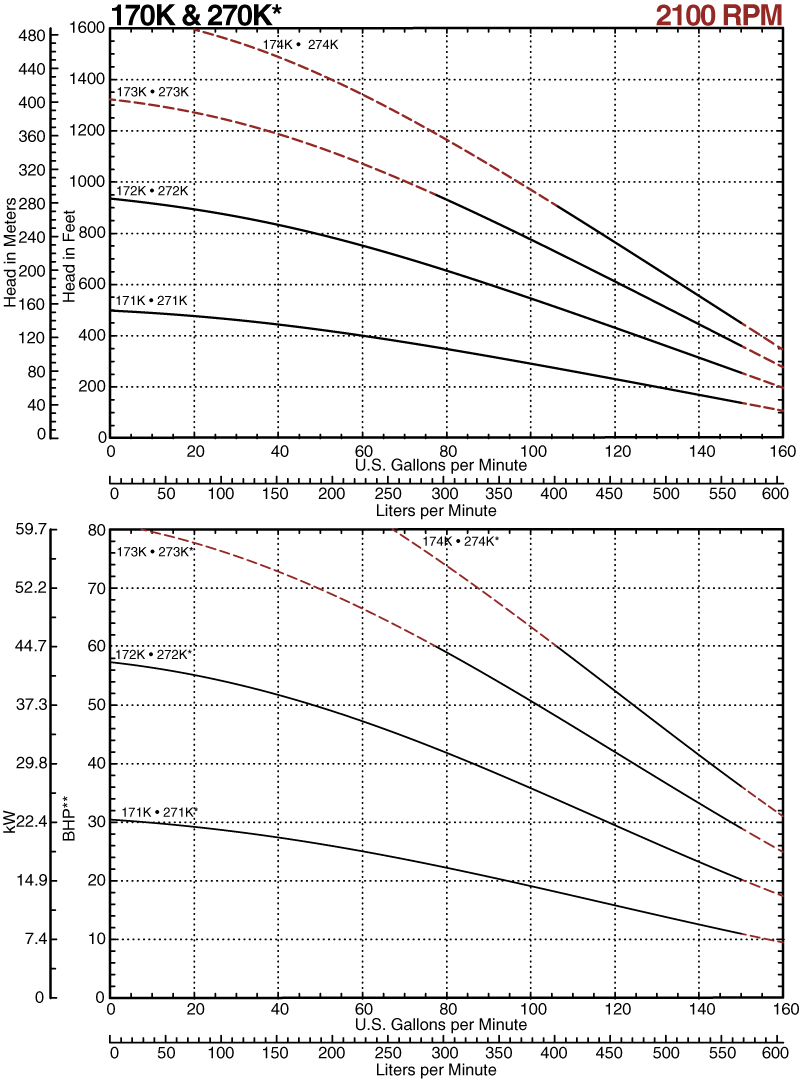

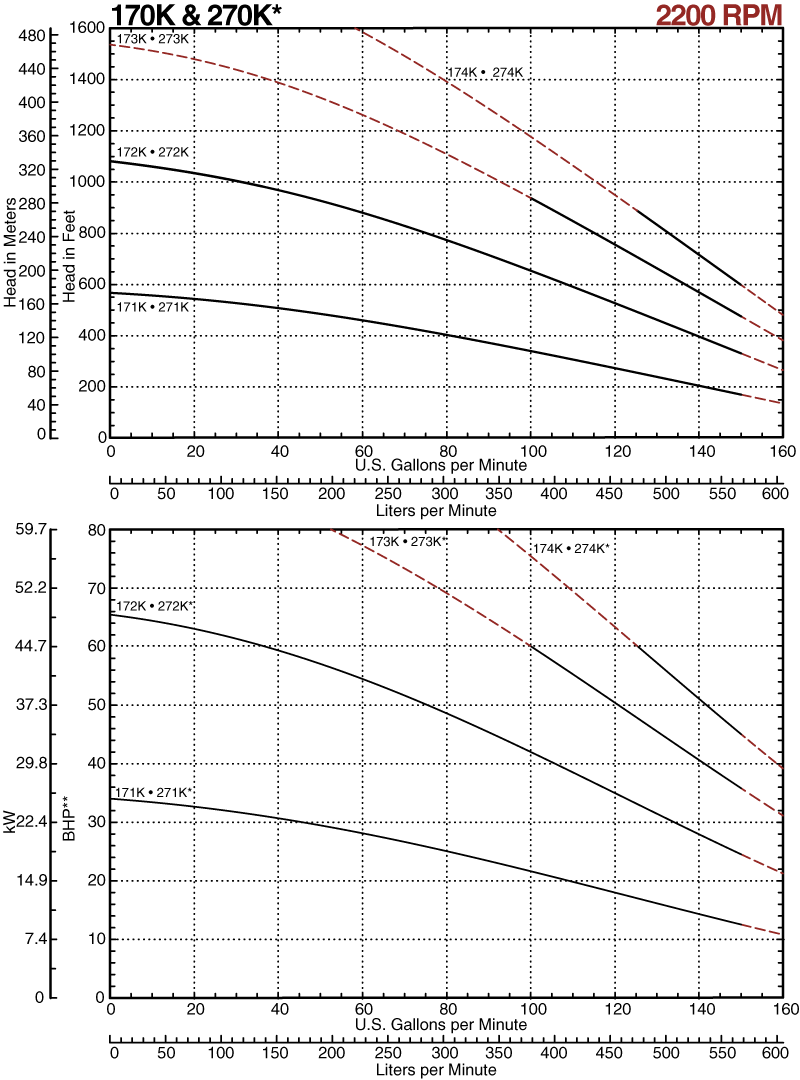

Click on the arrows on the sides of the performance curve to speed up or slow down RPM.
Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids.
60 Horsepower is the maximum shaft limitation.
150 GPM is the maximum allowable flow for this pump's interior water path.
Consult factory for operation below 64.0 GPM.
*Add 1 horsepower for 270 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
