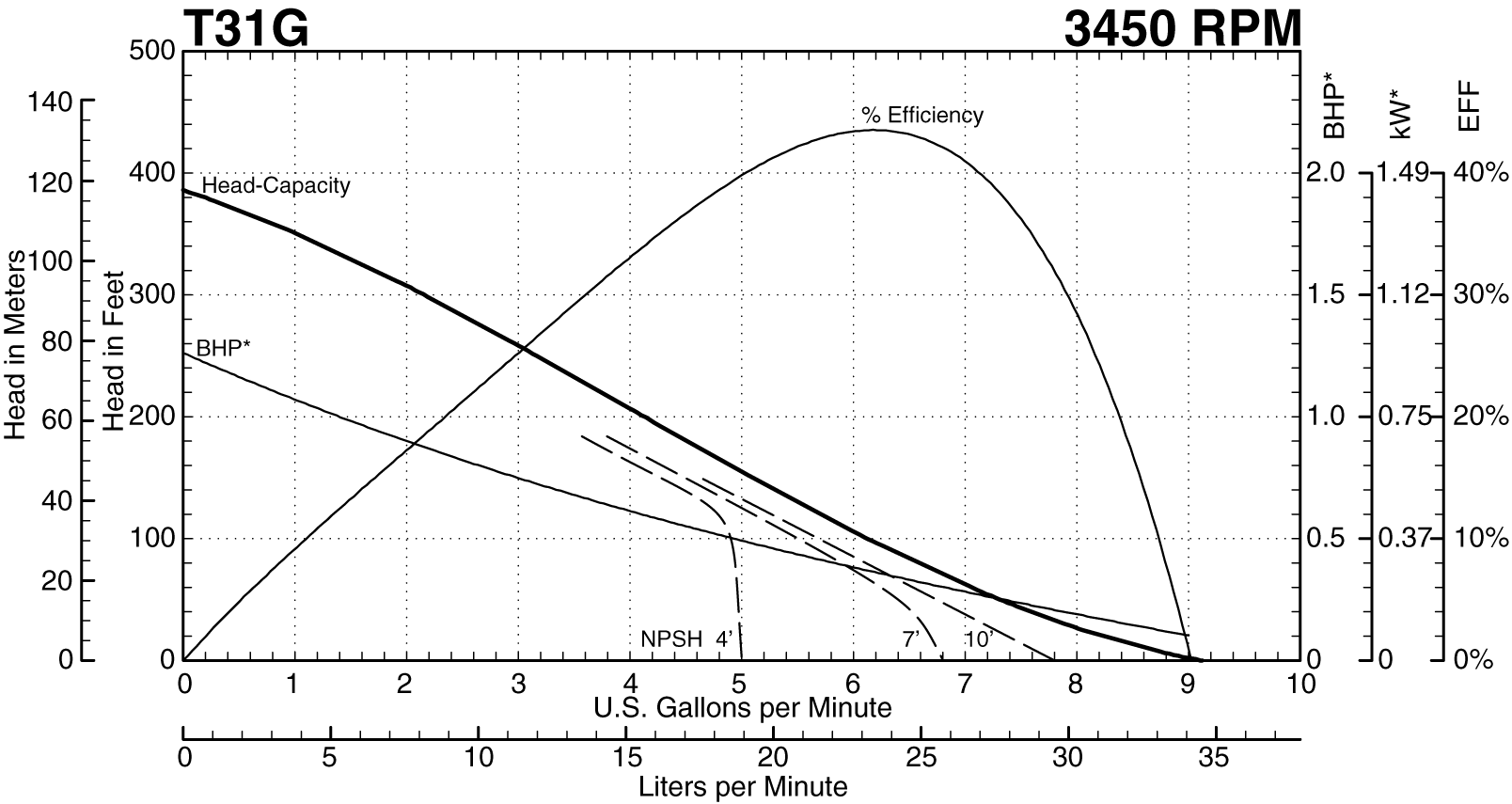

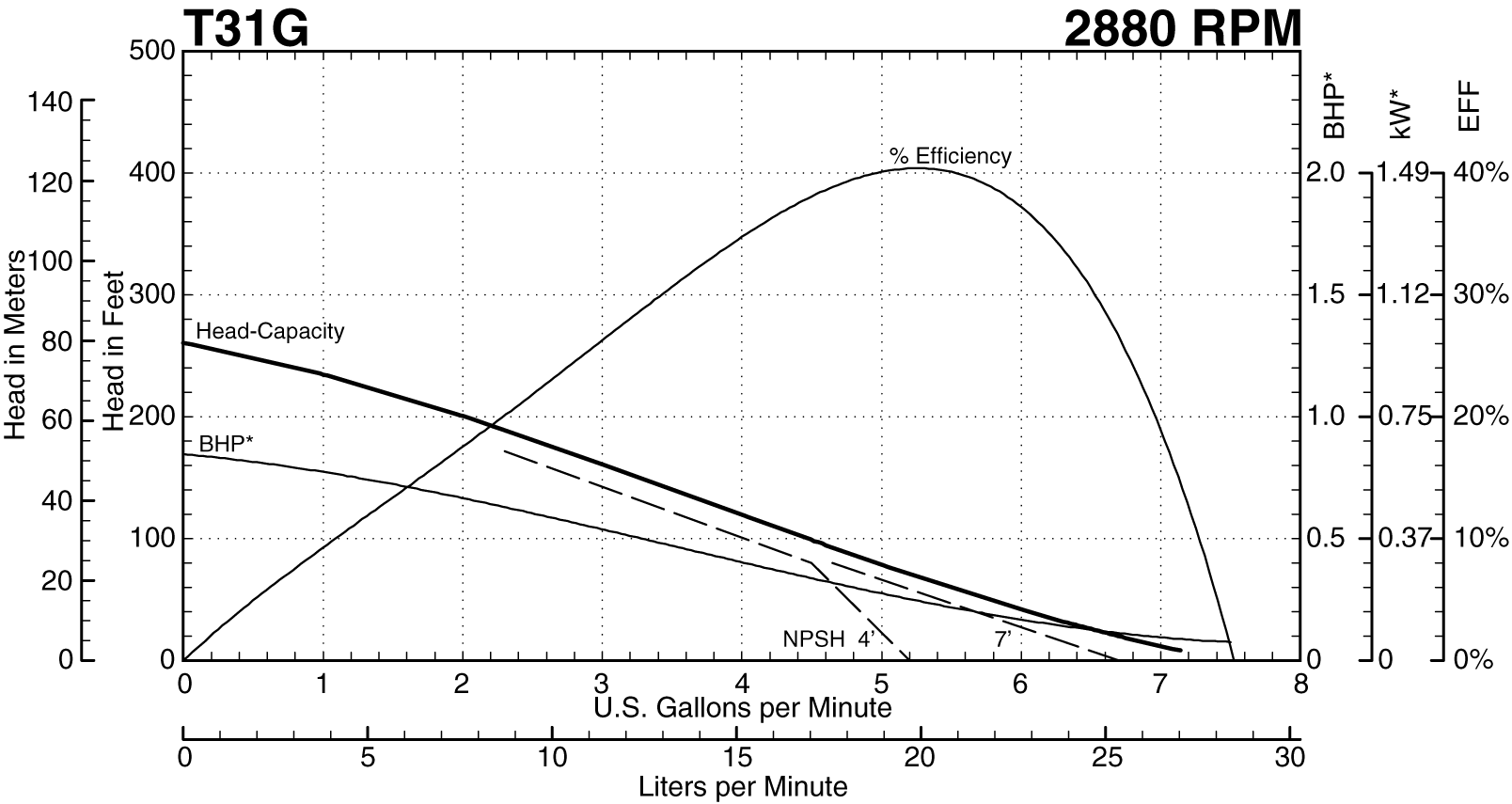

Model T31G Individual Curve

T31 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

Next Model >>

Note: 1750RPM T31's require the use of a 56C Face Adapter or a bearing pedestal mount on a base.

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the T31 Product Information Page.
