MTH Pumps, T41P • E41P Individual Curve

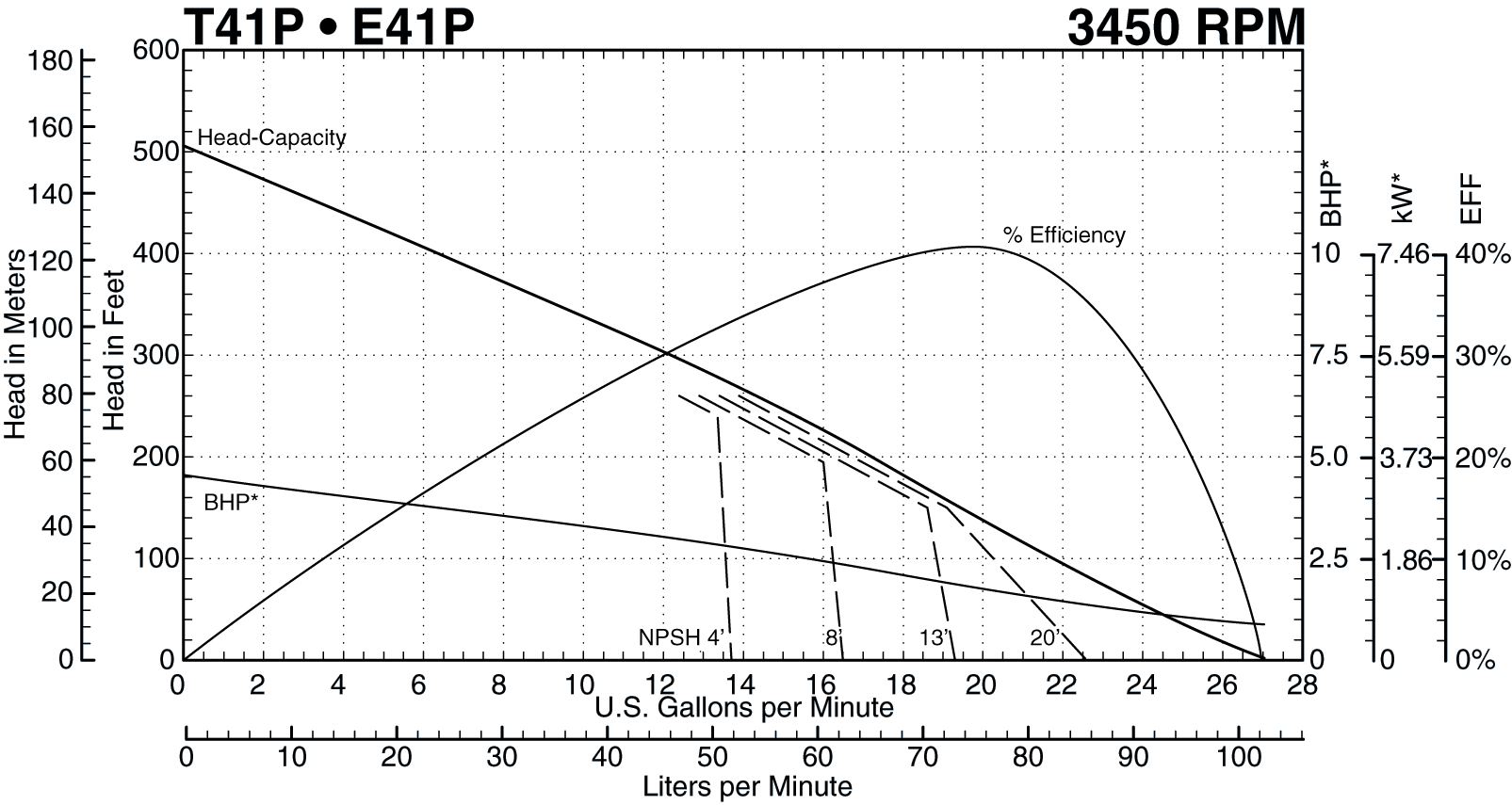

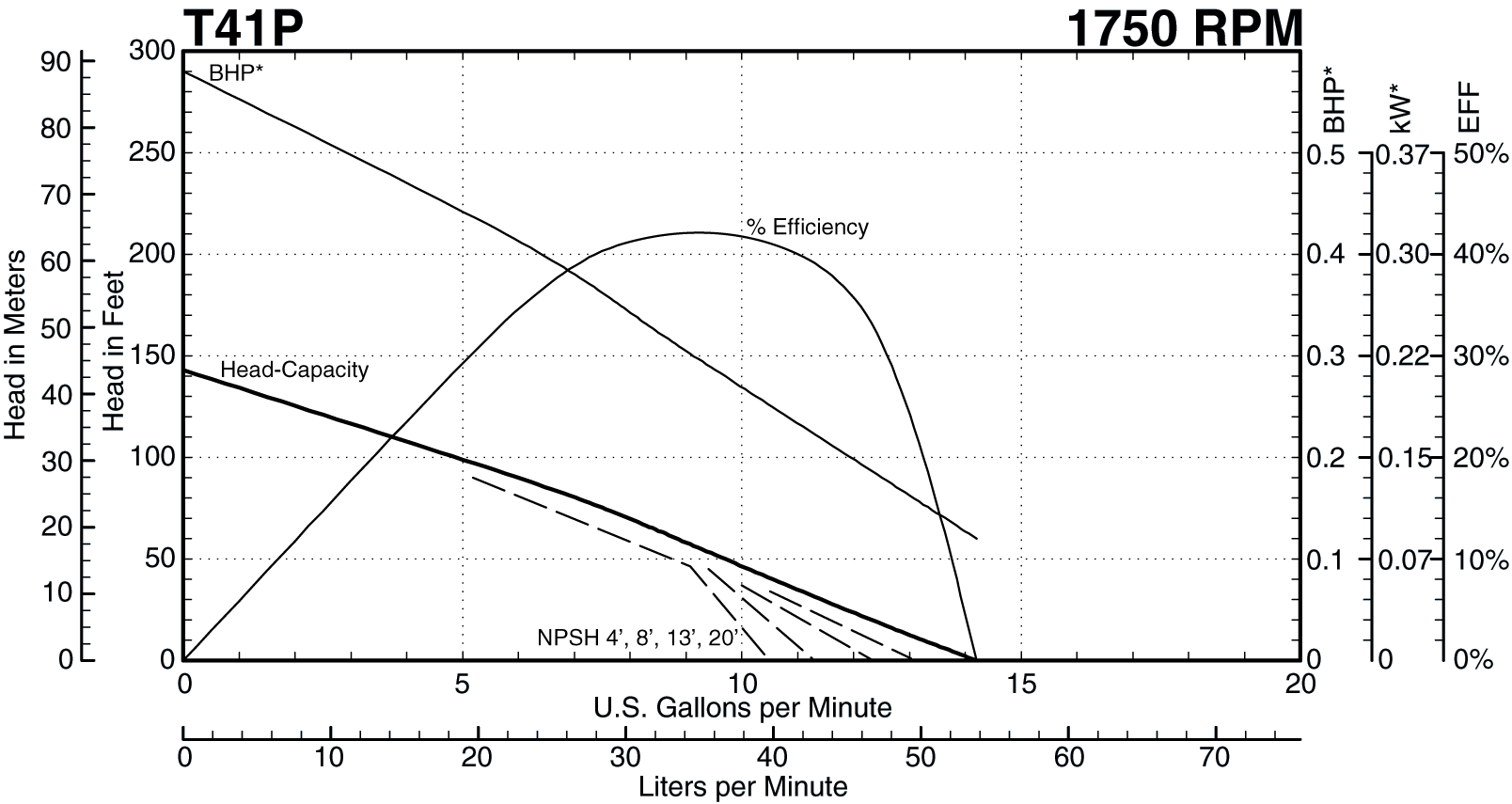

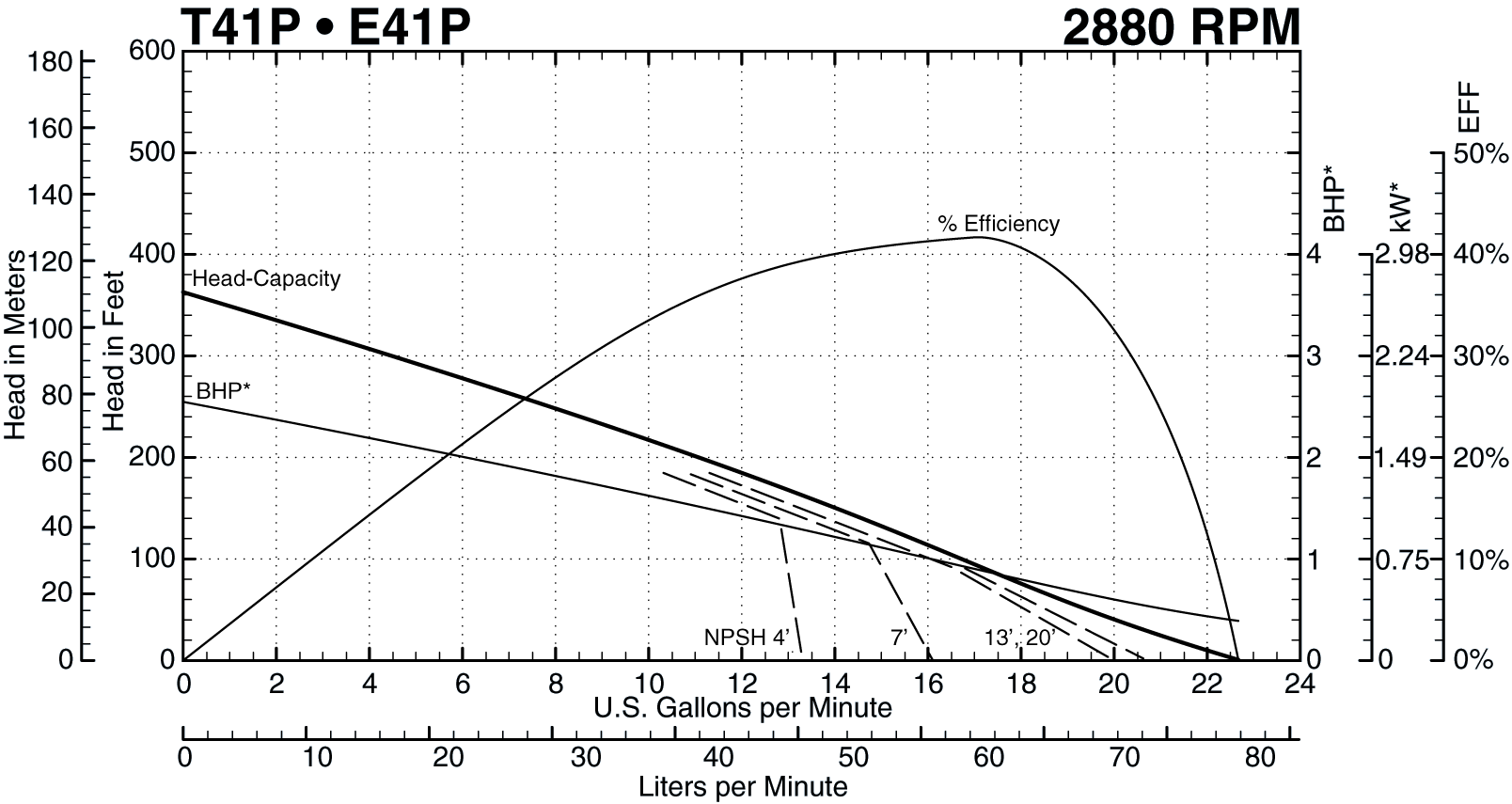

Model T41P • E41P Individual Curve

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

<< Prev Model

See the T51 Series for Next Higher Head-Capacities >>

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the T41 • E41 Product Information Page.
