MTH Pumps, T51S • E51S Individual Curve

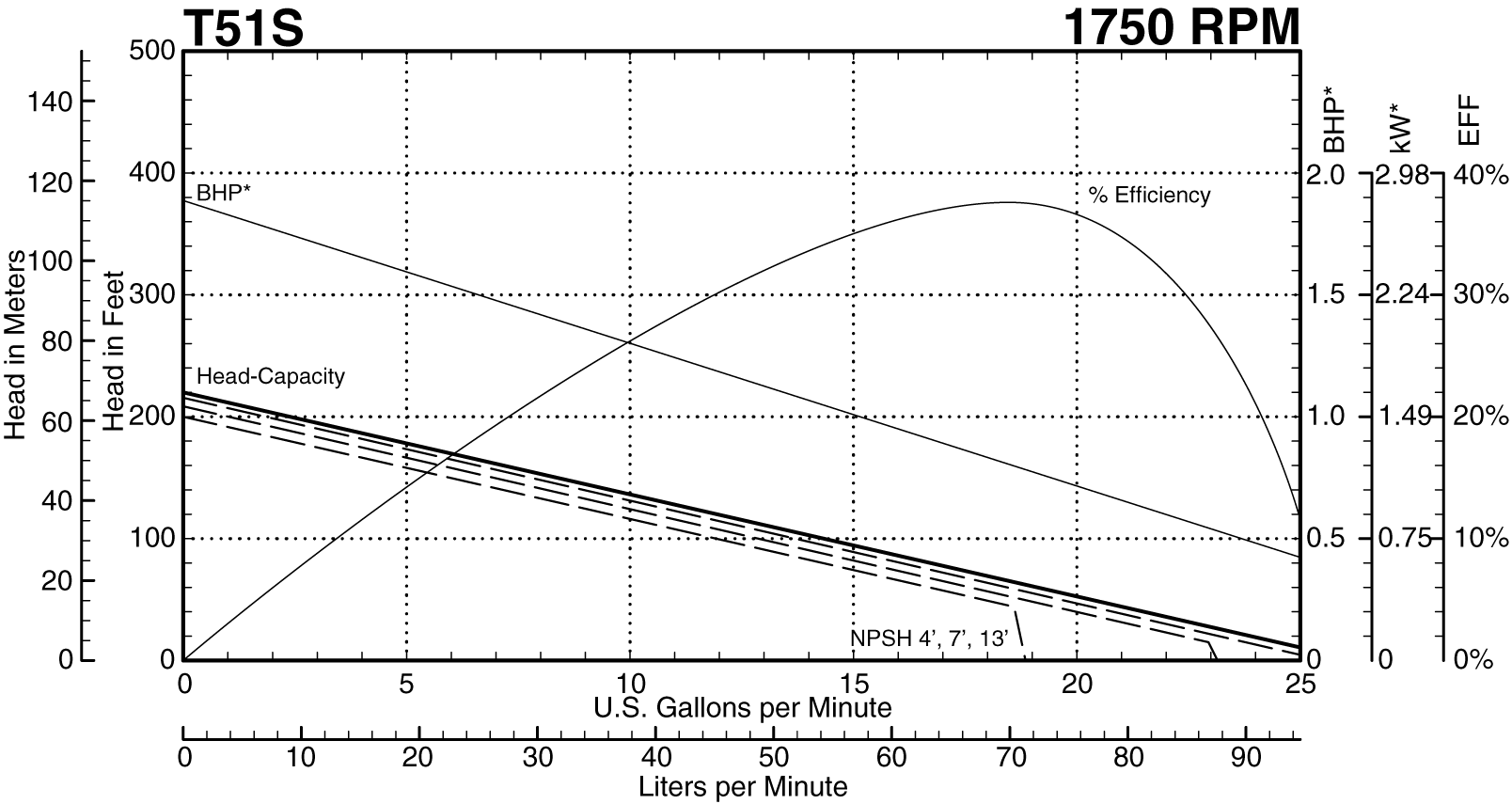

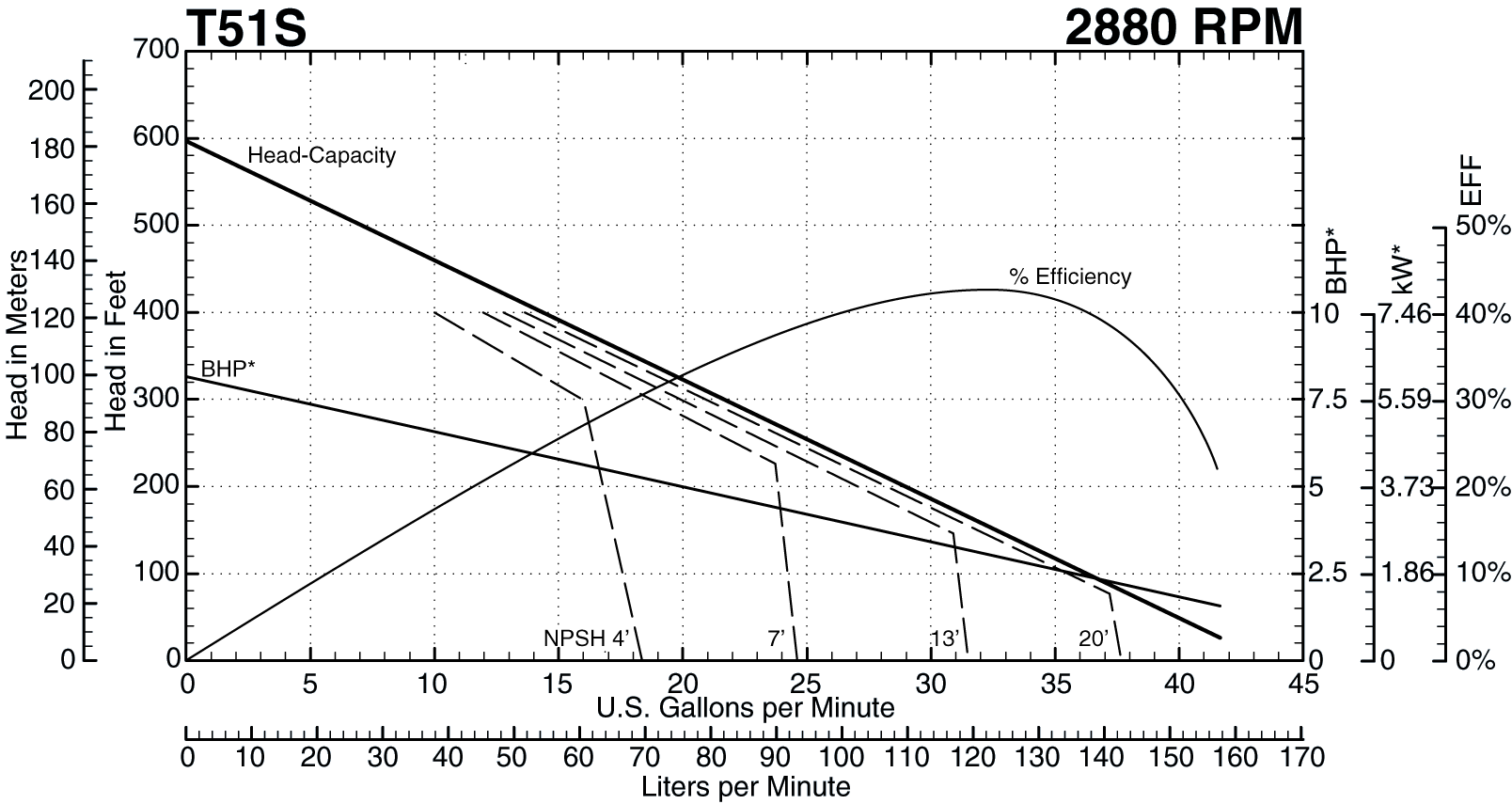

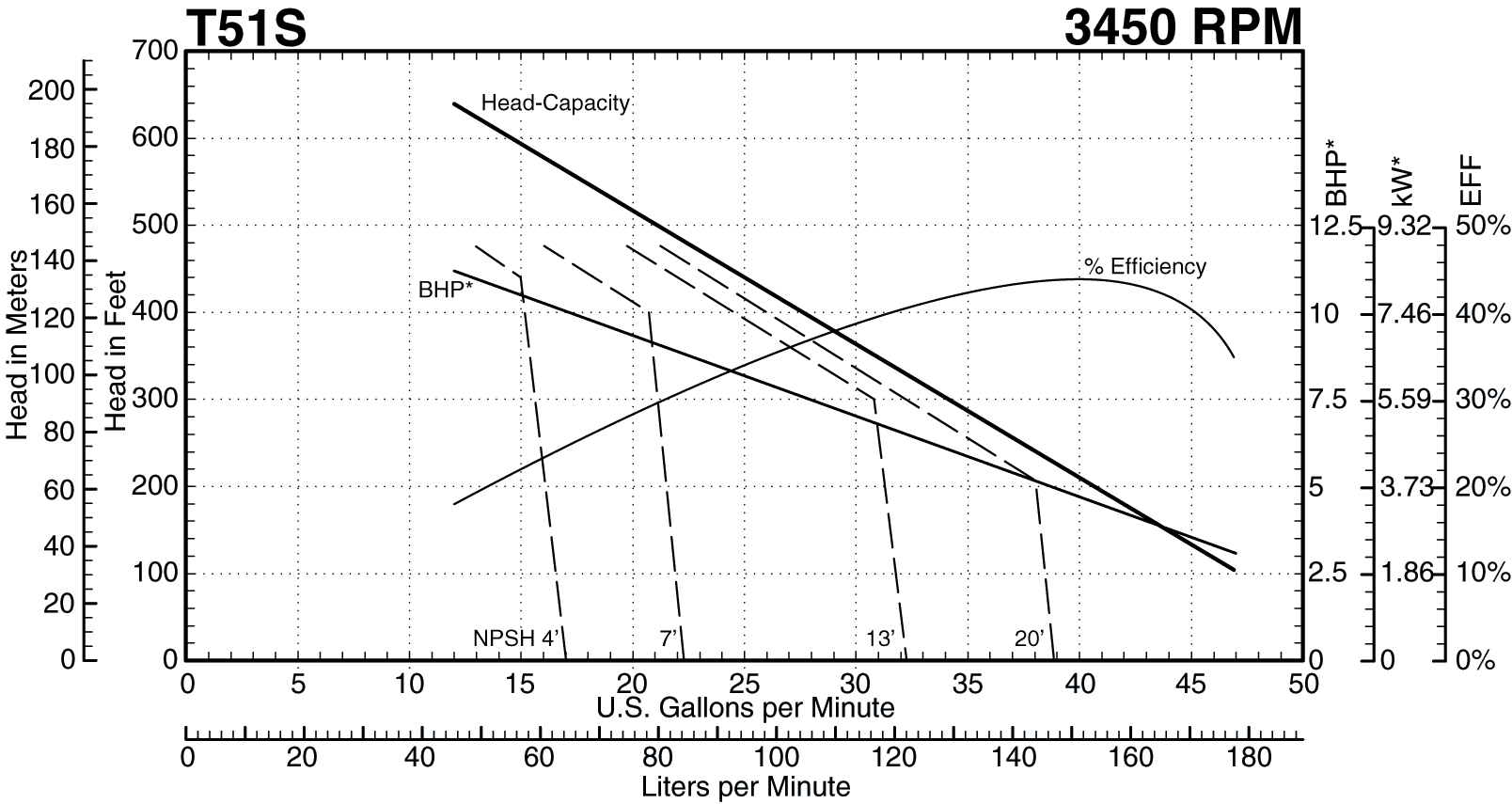

Model T51S Individual Curve

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

<< Prev Model

Back to Standard Products for Higher Capacities and Flows>>

DOE Compliance: IMP DIA = 4.30” PEIcl = 0.62

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the T51 • E51 Product Information Page.
