Models 140IA • 240IA Individual Curve

140 • 180 • 240 • 280 Product Information Page

<< Prev Model Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

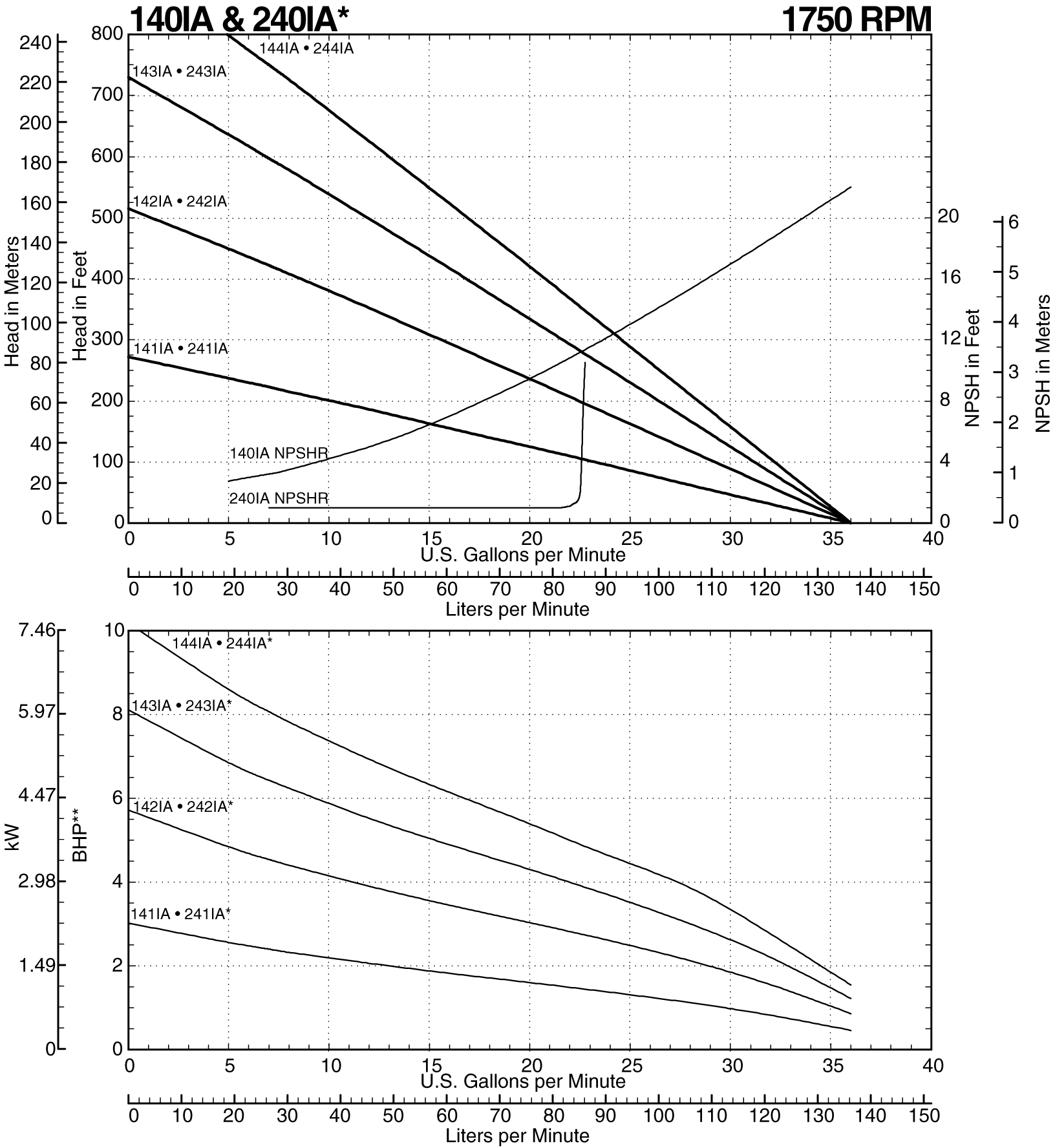

140IA Curve at 1750 RPM

140IA Curve at 1750 RPM Thumbnail

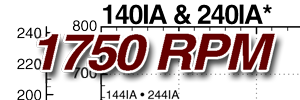

140IA Curve at 1750 RPM Thumbnail
<< Prev Model Next Model >>

Notes: Consult factory for operation below 14.0 GPM
*Add 1/2 horsepower for 240 Series models
**Horsepowerdata is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
